T4144035051-000
ActiveTE Connectivity AMP Connectors

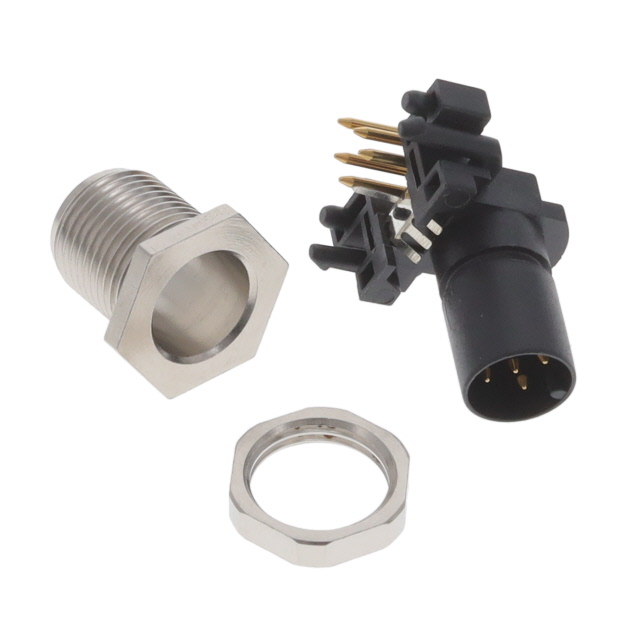

M12 RA M PNL REAR A 5P PCB SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | T4144035051-000 | T41440 Series |
---|---|---|
Applications | Industrial | Industrial |
Color | Silver | Silver |
Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
Contact Finish - Mating | Gold | Gold |
Contact Finish Thickness - Mating | Flash | Flash |
Contact Material | Copper Alloy | Copper Alloy |
Current Rating (Amps) | 4 A | 4 A |
Features | Board Guide, Board Lock | Board Guide, Board Lock |
Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
Number of Positions | - | 4 |
Operating Temperature [Max] | 85 °C | 85 °C |
Operating Temperature [Min] | -40 °C | -40 °C |
Orientation | A | A |
Primary Material | Metal | Metal |
Shell Material | Copper Alloy | Copper Alloy |
Shell Size - Insert | M12-5 | M12-4, M12-5 |
Shielding | Shielded | Shielded, Unshielded |
Termination | Solder | Solder |
Voltage Rating | 60 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Tray | 1 | $ 25.25 | |
10 | $ 20.84 | |||
30 | $ 19.38 | |||
80 | $ 18.31 | |||
230 | $ 17.91 | |||
440 | $ 17.77 |
T41440 Series
M12 RA M PNL REAR A 4P PCB SHLD
Part | Mounting Feature | Current Rating (Amps) | Mounting Type | Voltage Rating | Number of Positions | Features | Orientation | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Insert Material | Applications | Shell Size - Insert | Termination | Primary Material | Shell Material | Connector Type | Color | Contact Finish Thickness - Mating | Shielding | Contact Finish - Mating |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4144035041-000 | Bulkhead - Front Side Nut | 4 A | Panel Mount, Right Angle, Through Hole | 250 VDC | 4 | Board Guide, Board Lock | A | Copper Alloy | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Industrial | M12-4 | Solder | Metal | Copper Alloy | Male Pins, Receptacle | Silver | Flash | Shielded | Gold |
TE Connectivity AMP Connectors T4144015041-000 | Bulkhead - Front Side Nut | 4 A | Panel Mount, Right Angle, Through Hole | 250 VDC | 4 | Board Guide, Board Lock | A | Copper Alloy | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Industrial | M12-4 | Solder | Metal | Copper Alloy | Male Pins, Receptacle | Silver | Flash | Unshielded | Gold |
TE Connectivity AMP Connectors T4144035051-000 | Bulkhead - Front Side Nut | 4 A | Panel Mount, Right Angle, Through Hole | 60 VDC | Board Guide, Board Lock | A | Copper Alloy | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Industrial | M12-5 | Solder | Metal | Copper Alloy | Male Pins, Receptacle | Silver | Flash | Shielded | Gold |
Description
General part information
T41440 Series
5 Position Circular Connector Receptacle, Male Pins Solder
