Part	Note	Voltage Rating	Material - Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Stacking Direction	Number of Positions	Row Spacing	Contact Termination	Contact Type	Connector Type	Color	Mounting Type	Number of Rows	For Use With/Related Products	Specifications	Accessory Type	Material
Molex 0359650204	Contacts Not Included	300 VAC/DC	PBT Polybutylene Terephthalate Polyester	120 °C	-40 °C	Latch Lock	Top to Bottom	2	0.315 in	Crimp	Female Blade Socket Male Blade	Plug	Blue	Free Hanging (In-Line)	2

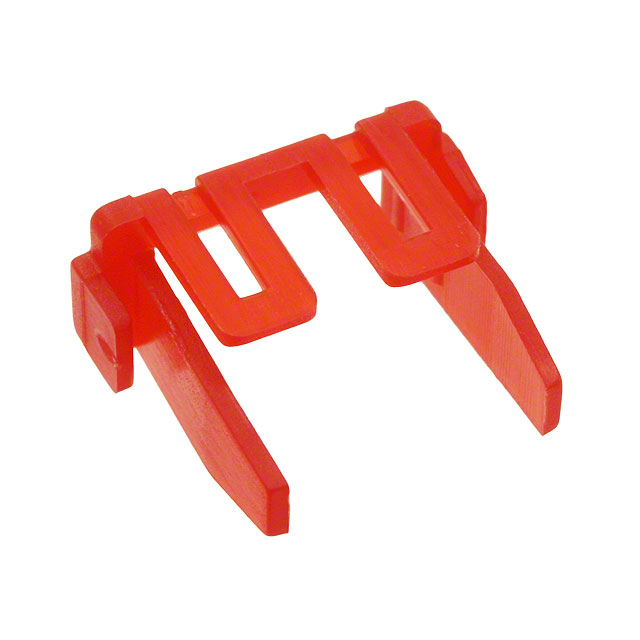

Molex 0359650292													Red			VersaBlade Housings	2 Positions	Retainer	6 Nylon 6 Polyamide (PA66)
Molex 0359659210	Contacts Not Included		PC PET Polycarbonate Polyethylene Terephthalate	120 °C	-40 °C	Latch Lock	Top to Bottom	2	0.315 in	Crimp	Female Blade Socket Male Blade	Receptacle	Natural	Free Hanging (In-Line)	2
Molex 0359650212
Molex 0359650200	Contacts Not Included		PBT Polybutylene Terephthalate	120 °C	-40 °C	Latch Lock	Top to Bottom	2	0.315 in	Crimp	Female Blade Socket Male Blade	Receptacle	Natural	Free Hanging (In-Line)	2
Molex 0359659220	Contacts Not Included		PC PET Polycarbonate Polyethylene Terephthalate	120 °C	-40 °C	Latch Lock	Top to Bottom	2	0.315 in	Crimp	Female Blade Socket Male Blade	Receptacle	Natural	Free Hanging (In-Line)	2
Molex 0359650210	Contacts Not Included		PBT Polybutylene Terephthalate	120 °C	-40 °C	Latch Lock	Top to Bottom	2	0.315 in	Crimp	Female Blade Socket Male Blade	Receptacle	Natural	Free Hanging (In-Line)	2
Molex 0359659222
Molex 0359659203	Contacts Not Included	300 VAC/DC	PC PET Polycarbonate Polyethylene Terephthalate	110 °C	-40 °C	Latch Lock	Top to Bottom	2	0.315 in	Crimp	Female Blade Socket Male Blade	Plug	Yellow	Free Hanging (In-Line)	2
Molex 0359659200	Contacts Not Included		PC PET Polycarbonate Polyethylene Terephthalate	120 °C	-40 °C	Latch Lock	Top to Bottom	2	0.315 in	Crimp	Female Blade Socket Male Blade	Receptacle	Natural	Free Hanging (In-Line)	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0359650292 | Datasheet
