FHN0.63NT100

Active

Techflex

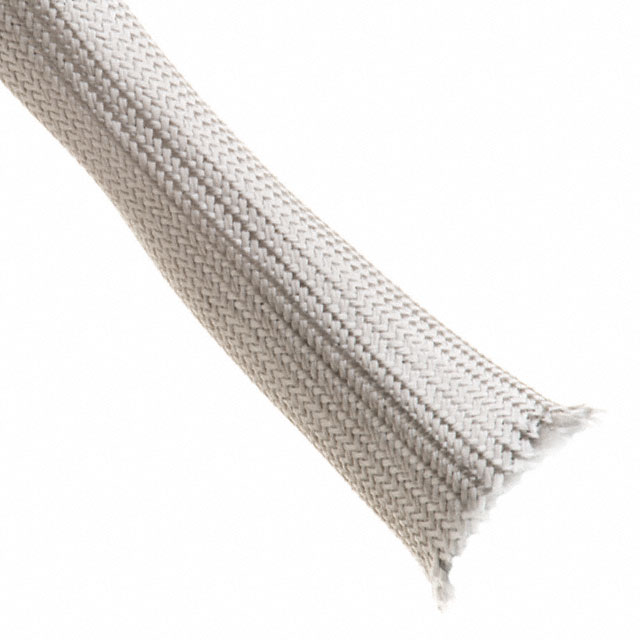

EXPAND SLEEVING 5/8" X 100' NAT

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 5/8" X 100' NAT

Technical Specifications

Parameters and characteristics for this part

Specification	FHN0.63NT100

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	0.75 in
Diameter - Inside, Expanded [diameter]	19.05 mm
Diameter - Inside, Non-Expanded [diameter]	15.88 mm
Diameter - Inside, Non-Expanded [diameter]	0.625 in
Features	Clean Cut, Vibration Resistant
Heat Protection	Heat Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass, Halogen Free
Material Flammability Rating	UL VW-1
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.024 in
Wall Thickness	0.61 mm

Part	Material Flammability Rating	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Heat Protection	Color	Type	Length	Length	Type Attributes	Material	Wall Thickness	Wall Thickness	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Features
Techflex FHN0.63NT100	UL VW-1	0.75 in	19.05 mm	Heat Resistant	Natural	Sleeve	100 ft	30.48 m	Expandable	Fiberglass Halogen Free	0.024 in	0.61 mm	Abrasion Resistant	15.88 mm	0.625 in	Clean Cut Vibration Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 145.28

General part information

Sleeve X 100' (30.48m) Natural
