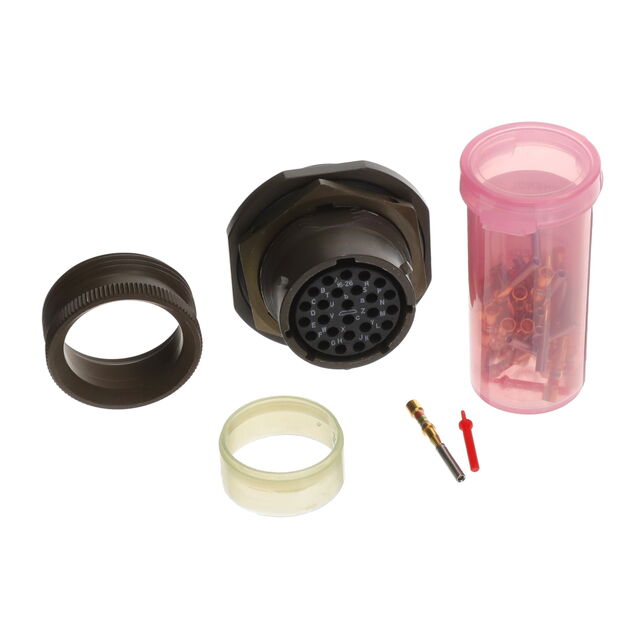

MS3124E16-26S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3124E16-26S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3124E16-26S | MS3124E16 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 26 | 26 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 26 | 26 |
| Shell Size - Insert [Min] | 16 | 16 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 292.89 | |
| 10 | $ 229.89 | |||
| 25 | $ 210.03 | |||
| 50 | $ 196.66 | |||
MS3124E16 Series
RECEPT
| Part | Ingress Protection | Number of Positions | Contact Material | Primary Material | Current Rating (Amps) | Applications | Color | Orientation | Shell Material | Insert Material | Grade | Shielding | Voltage Rating | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Fastening Type | Shell Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Qualification | Contact Finish - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3124E16-23S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E16-26S | Environment Resistant | 26 | Copper Alloy | Metal | 7.5 A | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | N | Aluminum | Neoprene | Military | Unshielded | 600 VAC | 16 | 26 | Bayonet Lock | Olive Drab Chromate over Cadmium | Crimp | -55 °C | 125 °C | Bulkhead - Front Side Nut | MIL-DTL-26482 Series I | Gold | Receptacle, Female Sockets |
Amphenol Industrial Operations MS3124E16-8P(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E16-23S(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E16-99S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E16-26P(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E16-8S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E16-8P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E16-14P(LC) |
Description
General part information
MS3124E16 Series
26 Position Circular Connector Receptacle, Female Sockets Crimp
