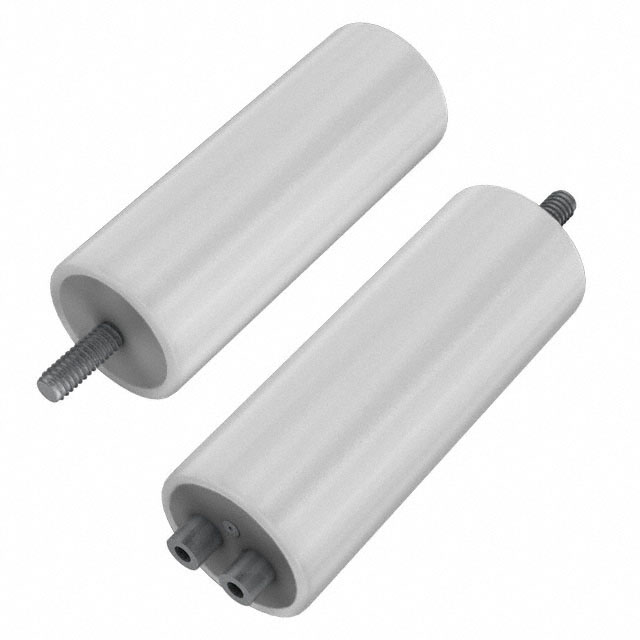

PEH169MD4470QB2

Active

KEMET

CAP ALUM 4700UF 63V SCREW CHAS M

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 4700UF 63V SCREW CHAS M

Technical Specifications

Parameters and characteristics for this part

Specification	PEH169MD4470QB2

Applications	General Purpose
Capacitance	4700 µF
ESR (Equivalent Series Resistance)	22 mOhm
Height - Seated (Max) [Max] [z]	97.5 mm
Height - Seated (Max) [Max] [z]	3.839 in
Impedance	11 mOhms
Lead Spacing	13 mm
Lead Spacing	0.512 in
Lifetime @ Temp.	7000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Size / Dimension [diameter]	1.441 in
Size / Dimension [diameter]	36.6 mm
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Voltage - Rated	63 V

Part	Mounting Type	Capacitance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance [Min]	Tolerance [Max]	Polarization	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Impedance	Voltage - Rated	Package / Case
KEMET PEH169MD4470QB2	Chassis Mount	4700 µF	22 mOhm	97.5 mm	3.839 in	-40 °C	105 ░C	-10 %	30 %	Polar	7000 Hrs	13 mm	0.512 in	1.441 in	36.6 mm	General Purpose	11 mOhms	63 V	Radial Can - Screw Terminals
KEMET PEH169MA4220QB2	Chassis Mount	2200 µF	46 mOhm	52 mm	2.047 in	-40 °C	105 ░C	-10 %	30 %	Polar	7000 Hrs	13 mm	0.512 in	1.378 in	35 mm	General Purpose		63 V	Radial Can - Screw Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4700 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 22mOhm @ 100Hz 7000 Hrs @ 105°C
