6835-0-00-15-00-00-44-0
ActiveMill-Max Manufacturing Corp.
CONN SINGLE POST 0.080DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
6835-0-00-15-00-00-44-0
ActiveMill-Max Manufacturing Corp.
CONN SINGLE POST 0.080DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6835-0-00-15-00-00-44-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 3.12 mm |
| Flange Diameter [diameter] | 0.123 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 5.72 mm |
| Length - Above Flange [x] | 0.225 in |
| Length - Below Flange [x] | 1.6 mm |
| Length - Below Flange [x] | 0.063 in |
| Length - Overall [x] | 0.587 in |
| Length - Overall [x] | 14.91 mm |
| Mounting Hole Diameter [diameter] | 0.092 in |
| Mounting Hole Diameter [diameter] | 2.34 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Pin Size - Below Flange [diameter] | 0.09 " |
| Pin Size - Below Flange [diameter] | 2.29 mm |
| Terminal Style | Flanged |
| Terminal Type | Single Post |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.60 | |
| 10 | $ 1.39 | |||
| 25 | $ 1.33 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.12 | |||
| 500 | $ 1.04 | |||
Description
General part information
6835-0 Series

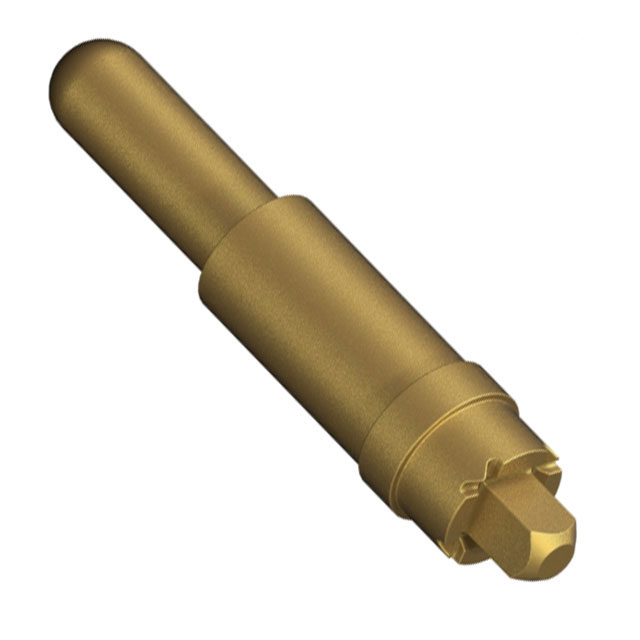

Single Post Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia
