342-037-559-112
ActiveEDAC Inc.

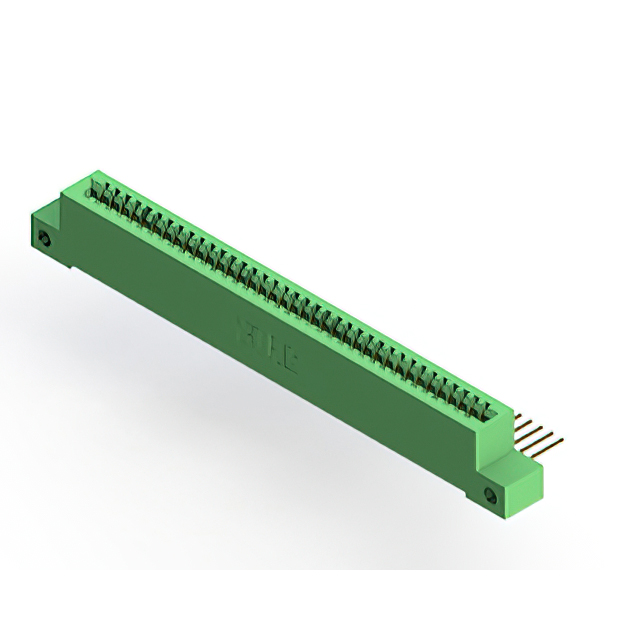

CONN EDGE SINGLE FML 37POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-037-559-112
ActiveEDAC Inc.
CONN EDGE SINGLE FML 37POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-037-559-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
342-037 Series
| Part | Pitch [x] | Pitch [x] | Contact Finish | Color | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Type | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Number of Rows | Termination Rows | Gender | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole Right Angle | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole Right Angle | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole Right Angle | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole Right Angle | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
EDAC Inc. | 2.54 mm | 0.1 in | Gold | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 37 | 37 | 37 | Cantilever | Single | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 37 | 1 | 1 | Female | Polyester Thermoplastic | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 20.90 | |
Description
General part information
342-037 Series
37 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
