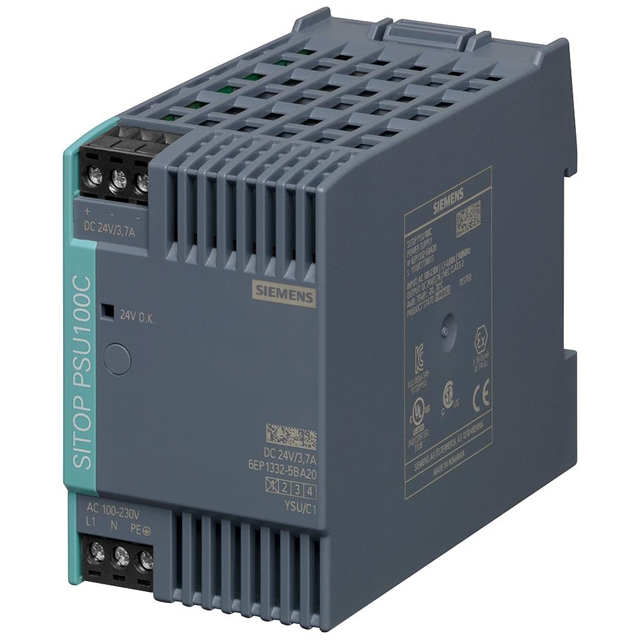

6EP13325BA20

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 89W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 89W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP13325BA20

AC Voltage - Input [Max]	230 VAC, 264 VAC
AC Voltage - Input [Min]	85 VAC, 100 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CSA, cCSAus, cULus, UL, cUL, CB, CE
Current - Output (Max) [Max]	3.7 A
DC Voltage - Input (Max) [Max]	300 V
DC Voltage - Input (Min) [Min]	110 V
Efficiency	87 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	89 W
Size / Dimension [x]	3.94 in
Size / Dimension [x]	100 mm
Size / Dimension [y]	2.07 in
Size / Dimension [y]	52.5 mm
Size / Dimension [z]	3.15 "
Size / Dimension [z]	80 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Standard Number	Approval Agency	DC Voltage - Input (Max) [Max]	Input Type	Voltage - Output 1	Features	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Applications	DC Voltage - Input (Min) [Min]
Siemens 6EP13325BA20	85 VAC 100 VAC	230 VAC 264 VAC	3.7 A	87 %	3.15 "	2.07 in	3.94 in	80 mm	52.5 mm	100 mm	89 W	60950-1 UL 508	CB cCSAus CE CSA cUL cULus UL	300 V	AC or DC	24 V	Adjustable Output IP20 Universal Input	1	-20 °C	70 °C	Hazardous Locations Industrial ITE (Commercial)	110 V
