SMS-102-01-G-S

Active

Samtec Inc.

CONN RCPT 2POS 0.05 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 2POS 0.05 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMS-102-01-G-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Number of Rows	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Connector Type	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. SMS-102-01-G-S	Gold	Square	-55 °C	125 °C	2	Through Hole	1	2.54 mm	0.1 in	All	5 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	Forked	Receptacle	Gold	0.335 "	8.51 mm	Black	Solder
Samtec Inc. SMS-102-01-G-D	Gold	Square	-55 °C	125 °C	4	Through Hole	2	2.54 mm	0.1 in	All	5 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	Forked	Receptacle	Gold	0.335 "	8.51 mm	Black	Solder	2.54 mm	0.1 in
Samtec Inc. SMS-102-02-G-S	Gold	Square	-55 °C	125 °C	2	Through Hole	1	4.83 mm	0.19 in	All	5 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	Forked	Receptacle	Gold	0.335 "	8.51 mm	Black	Solder
Samtec Inc. SMS-102-01-S-D	Tin	Square	-55 °C	125 °C	4	Through Hole	2	2.54 mm	0.1 in	All	5 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	0.05 in	1.27 mm	Push-Pull			Forked	Receptacle	Gold	0.335 "	8.51 mm	Black	Solder	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

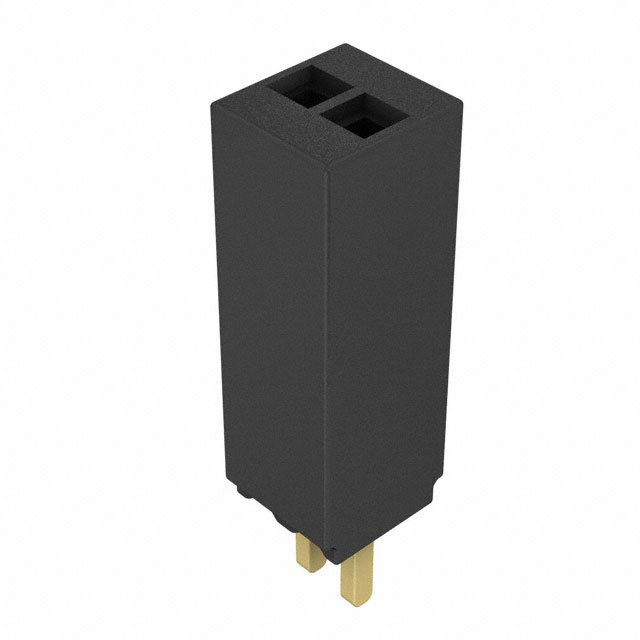

2 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
