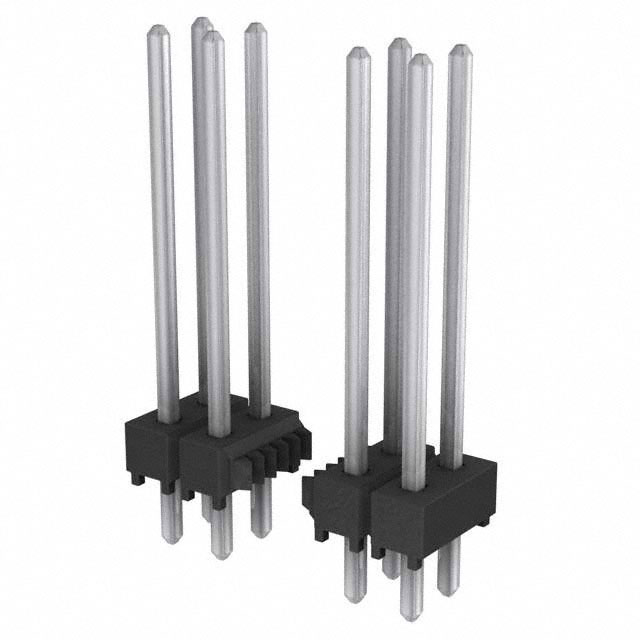

TSW-146-17-T-D

Active

Samtec Inc.

CONN HEADER VERT 92POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSW Footprint Datasheet

TSW-146-17-T-D

Active

Samtec Inc.

CONN HEADER VERT 92POS 2.54MM

Deep-Dive with AI

DocumentsTSW Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-146-17-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	15.75 mm
Contact Length - Mating	0.62 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	92
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.83 in
Overall Contact Length	21.08 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-146 Series

Part	Fastening Type	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Rows	Material Flammability Rating	Number of Positions	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Connector Type	Style	Contact Material	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Contact Type	Termination	Shrouding	Contact Length - Mating [x]	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSW-146-14-T-S	Push-Pull	Square	13.46 mm	0.53 in	1	UL94 V-0	46	Black	8.13 mm	0.32 in	Tin	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	105 ░C	-55 °C	All	Through Hole	0.1 in	2.54 mm	0.11 in	2.79 mm	Male Pin	Solder	Unshrouded
Samtec Inc. TSW-146-23-T-S	Push-Pull	Square	11.3 mm	0.445 "	1	UL94 V-0	46	Black	5.84 mm		Tin	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	105 ░C	-55 °C	All	Through Hole	0.1 in	2.54 mm		2.92 mm	Male Pin	Solder	Unshrouded	0.23 in	0.115 in
Samtec Inc. TSW-146-07-G-T
Samtec Inc. TSW-146-08-S-T-RA	Push-Pull	Square			3	UL94 V-0	138	Black	5.84 mm		Tin	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.32 in	8.13 mm	125 °C	-55 °C	All	Through Hole Right Angle	0.1 in	2.54 mm		2.29 mm	Male Pin	Solder	Unshrouded	0.23 in	0.09 "	Gold	30 Áin	0.76 Ám	2.54 mm	0.1 in
Samtec Inc. TSW-146-23-S-D	Push-Pull	Square	11.3 mm	0.445 "	2	UL94 V-0	92	Black	5.84 mm		Tin	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	125 °C	-55 °C	All	Through Hole	0.1 in	2.54 mm		2.92 mm	Male Pin	Solder	Unshrouded	0.23 in	0.115 in	Gold	30 Áin	0.76 Ám	2.54 mm	0.1 in
Samtec Inc. TSW-146-08-G-D-RA	Push-Pull	Square			2	UL94 V-0	92	Black	5.84 mm		Gold	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)		5.56 mm	125 °C	-55 °C	All	Through Hole Right Angle	0.1 in	2.54 mm		2.29 mm	Male Pin	Solder	Unshrouded	0.23 in	0.09 "	Gold	10 çin	0.25 çm	2.54 mm	0.1 in	0.219 in	3 µin	0.076 µm
Samtec Inc. TSW-146-17-T-D	Push-Pull	Square	21.08 mm	0.83 in	2	UL94 V-0	92	Black	15.75 mm	0.62 in	Tin	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	105 ░C	-55 °C	All	Through Hole	0.1 in	2.54 mm	0.11 in	2.79 mm	Male Pin	Solder	Unshrouded						2.54 mm	0.1 in
Samtec Inc. TSW-146-17-S-S	Push-Pull	Square	21.08 mm	0.83 in	1	UL94 V-0	46	Black	15.75 mm	0.62 in	Tin	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	125 °C	-55 °C	All	Through Hole	0.1 in	2.54 mm	0.11 in	2.79 mm	Male Pin	Solder	Unshrouded			Gold	30 Áin	0.76 Ám
Samtec Inc. TSW-146-07-G-S	Push-Pull	Square	10.92 mm	0.43 in	1	UL94 V-0	46	Black	5.84 mm		Gold	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	125 °C	-55 °C	All	Through Hole	0.1 in	2.54 mm		2.54 mm	Male Pin	Solder	Unshrouded	0.23 in	0.1 in	Gold	10 çin	0.25 çm				3 µin	0.076 µm
Samtec Inc. TSW-146-07-S-S	Push-Pull	Square	10.92 mm	0.43 in	1	UL94 V-0	46	Black	5.84 mm		Tin	Header	Board to Board Cable	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	125 °C	-55 °C	All	Through Hole	0.1 in	2.54 mm		2.54 mm	Male Pin	Solder	Unshrouded	0.23 in	0.1 in	Gold	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.11
		10	$ 5.54
		100	$ 4.89
		500	$ 4.15
		1000	$ 3.54

Description

General part information

TSW-146 Series

Connector Header Through Hole 92 position 0.100" (2.54mm)

Documents

Technical documentation and resources

TSW Footprint

Datasheet
