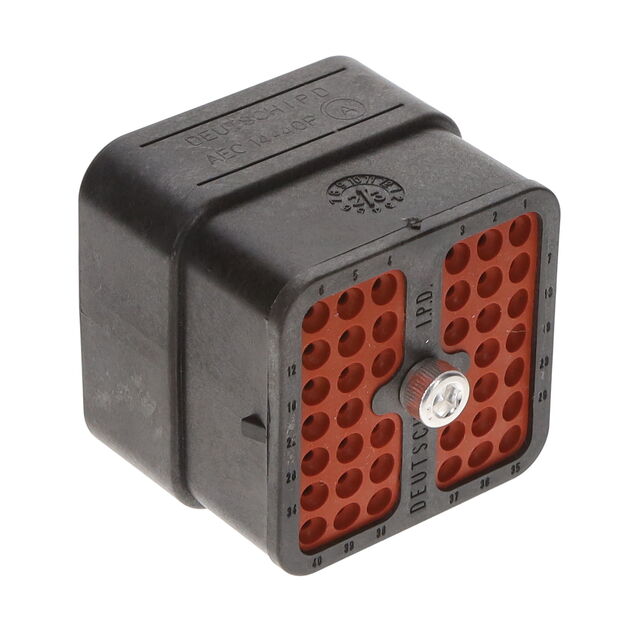

AEC14-40PA

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

40P RECP ASM

Technical Specifications

Parameters and characteristics for this part

Specification	AEC14-40PA

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyetherimide (PEI), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	40
Number of Rows	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing	5.4 mm
Row Spacing	0.213 in

Part	Contact Termination	Color	Number of Rows	Row Spacing	Row Spacing	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Number of Positions	Insulation Material	Fastening Type	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection AEC14-40PA	Crimp	Black	7	5.4 mm	0.213 in	Male Pin	-55 °C	125 °C	Receptacle	Free Hanging (In-Line)	40	Polyetherimide (PEI) Glass Filled
TE Connectivity Raychem Cable Protection AEC14-40PB	Crimp	Black	7	5.4 mm	0.213 in	Female Socket	-55 °C	125 °C	Receptacle	Free Hanging (In-Line)	40	Polyetherimide (PEI)	Push-Pull	5.5 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Rectangular Connectors - Housings Receptacle Black
