0190160007

Active

CONN QC RCPT 18-22AWG 0.187

Active

CONN QC RCPT 18-22AWG 0.187

Description

General part information

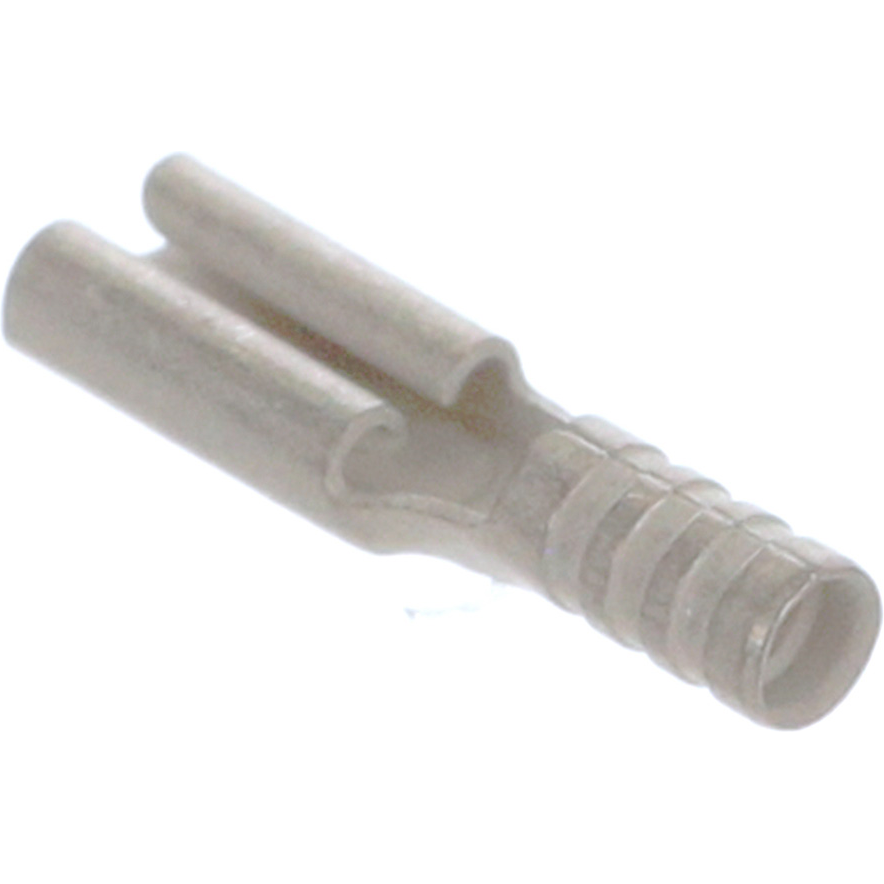

0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated

Parameters and characteristics for this part

Part	Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Tab Thickness	Gender	Contact Material	Mounting Type	Contact Finish	Insulation	Tab Width	Terminal Type	Length - Overall	Tab Length	Features
Molex 0190160022	Crimp	18 AWG	22 AWG	0.02 in	Female	Brass	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	0.187 in	Standard
Molex 0190160003	Crimp	18 AWG	22 AWG	0.032 in	Female	Brass	Free Hanging (In-Line)	Tin	Non-Insulated	0.11 in	Standard	0.57 in	0.25 in
Molex 0190160046	Crimp	14 AWG	16 AWG	0.032 in	Female	Brass	Free Hanging (In-Line)	Tin	Non-Insulated	0.205 in	Standard	0.573 in	0.25 in	Butted Seam
Molex 0190160086	Crimp	12 AWG	14 AWG	0.032 in	Female	Brass	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	0.25 in	Standard	0.627 in	0.313 in
Molex 0190160007	Crimp	18 AWG	22 AWG	0.032 in	Female	Brass	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	0.187 in	Standard	0.58 in	0.25 in
Molex 0190160001	Crimp	18 AWG	22 AWG	0.02 in	Female	Brass	Free Hanging (In-Line)	Tin	Non-Insulated	0.11 in	Standard	0.57 in	0.25 in
Molex 0190160085	Crimp	12 AWG	14 AWG	0.032 in	Female	Brass	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	0.25 in	Standard	0.66 in	0.31 in
Molex 0190160008	Crimp	18 AWG	22 AWG	0.02 in	Female	Brass	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	0.187 in	Standard	0.58 in	0.25 in
Molex 0190160006	Crimp	18 AWG	22 AWG	0.032 in	Female	Brass	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	0.187 in	Standard	0.58 in	0.25 in
Molex 0190160069	Crimp	10 AWG	12 AWG	0.032 in	Female	Brass	Free Hanging (In-Line)	Tin	Non-Insulated	0.25 in	Standard	0.705 in	0.31 in	Butted Seam
