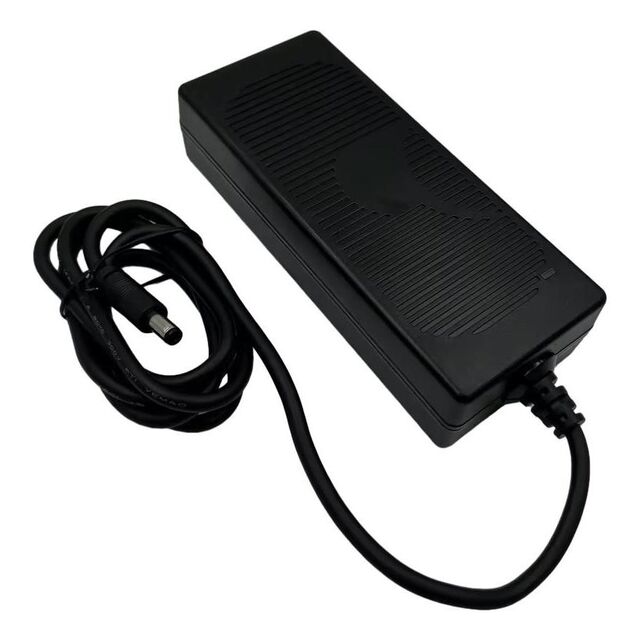

TR9CE7080CPCIMR6BLPS
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 12V 85W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9CE7080CPCIMR6BLPS
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 12V 85W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9CE7080CPCIMR6BLPS |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 7.08 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 85 W |
| Region Utilized | International |
| Size / Dimension [x] | 149.3 mm |
| Size / Dimension [x] | 5.88 in |
| Size / Dimension [y] | 62.8 mm |
| Size / Dimension [y] | 2.47 in |
| Size / Dimension [z] | 1.34 in |
| Size / Dimension [z] | 34 mm |
| Standard Number | 1310, 60601-1-2, 62368-1, 60335-1, 60601-1-11, 61347-1, 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
TR9CE7080 Series
| Part | Current - Output (Max) [Max] | Form | Voltage - Output | Power (Watts) | Input Connector | Region Utilized | Standard Number | Input Type | Approval Agency | Polarization | Voltage - Input [Min] | Voltage - Input [Max] | Cord Length | Cord Length | Applications | Output Connector | Output Connector [diameter] | Output Connector [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | No Load Power Consumption [Max] | Efficiency | Output Connector [x] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GlobTek, Inc. | 7.08 A | Desktop (Class I) | 12 V | 85 W | IEC 320-C14 | International | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | Cord | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI | Positive Center | 90 VAC | 264 VAC | 1.2 m | 47.2 in | Household Appliances ITE (Commercial) Medical | Barrel Plug | 2.1 mm 5.5 mm | 11 mm | 149.3 mm | 62.8 mm | 2.47 in | 1.34 in | 5.88 in | 34 mm | 150 mW | Level VI | ||
GlobTek, Inc. | 7.08 A | Desktop (Class I) | 12 V | 85 W | IEC 320-C14 | International | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | Cord | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI | Positive Center | 90 VAC | 264 VAC | 1.2 m | 47.2 in | Household Appliances ITE (Commercial) Medical | Barrel Plug | 2.5 mm 5.5 mm | 149.3 mm | 62.8 mm | 2.47 in | 1.34 in | 5.88 in | 34 mm | 150 mW | Level VI | 11 mm | ||
GlobTek, Inc. | 7.08 A | Desktop (Class I) | 12 V | 85 W | IEC 320-C14 | International | Cord | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI | 90 VAC | 264 VAC | 1.2 m | 47.2 in | Household Appliances ITE (Commercial) Medical | Power DIN | 149.3 mm | 62.8 mm | 2.47 in | 1.34 in | 5.88 in | 34 mm | 150 mW | CoC Tier 2 Level VI | 4 Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.57 | |
| 5 | $ 44.86 | |||
| 20 | $ 42.72 | |||
| 40 | $ 39.87 | |||
| 60 | $ 39.16 | |||
| 100 | $ 37.88 | |||
Description
General part information
TR9CE7080 Series
12V 85 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
