917845-1

Active

TE Connectivity AMP Connectors

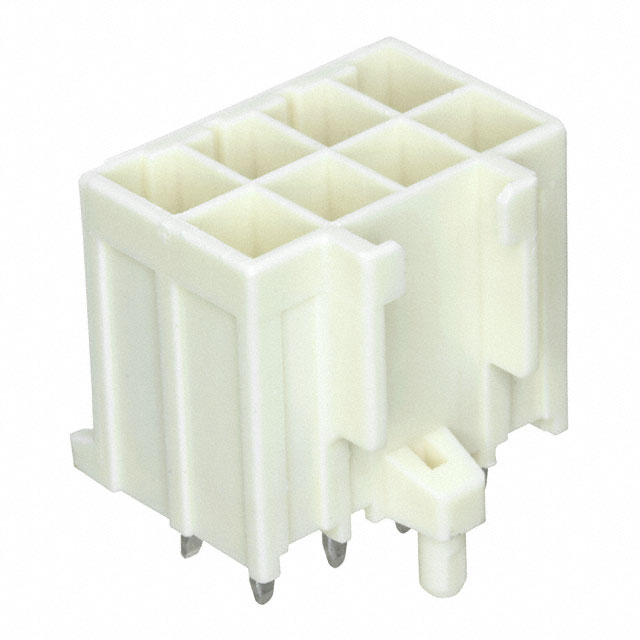

CONN HEADER VERT 8POS 3.96MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	917845-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.575 in
Insulation Height	14.6 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Row Spacing - Mating	4.6 mm
Row Spacing - Mating	0.181 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder

CONN HEADER VERT 8POS 3.96MM

Part	Style	Mounting Type	Features	Insulation Color	Number of Positions Loaded	Contact Shape	Material Flammability Rating	Contact Finish - Post	Shrouding	Number of Rows	Number of Positions	Connector Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Insulation Height	Insulation Height	Contact Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Termination
TE Connectivity AMP Connectors 917845-1	Board to Cable/Wire	Through Hole	Board Guide	Natural	All	Rectangular	UL94 V-0	Tin	Shrouded - 4 Wall	2	8	Header	Polyamide (PA66), Nylon 6/6, Glass Filled	0.15 in	3.81 mm	Copper Alloy	0.575 in	14.6 mm	Tab	Locking Ramp	4.6 mm	0.181 in	0.156 in	3.96 mm	Kinked Pin, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.156" (3.96mm)
