Q-1T03H0005036i

Active

Amphenol Custom Cable

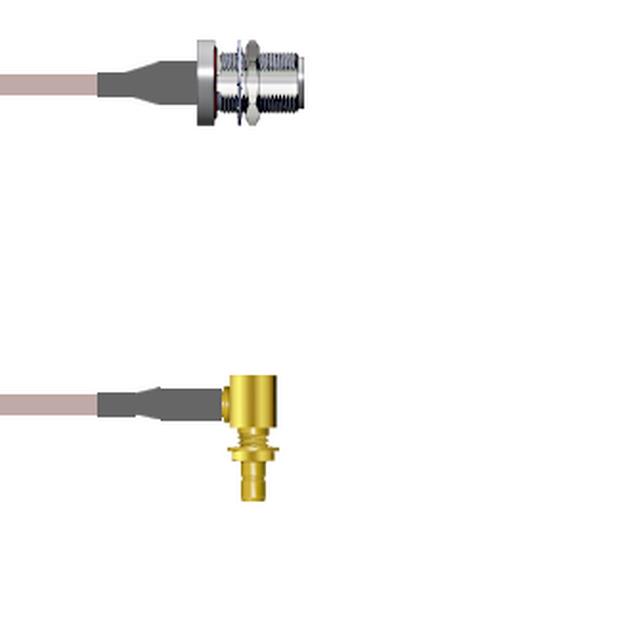

COAX CBL SMB TO N-TYPE 36"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMB TO N-TYPE 36"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T03H0005036i

1st Connector	Right Angle, SMB Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Part	2nd Connector Mounting Feature	1st Connector	Frequency - Max [Max]	1st Connector Mounting Type	Color	1st Connector Mounting Feature	Cable Type	Features	2nd Connector Mounting Type	Length	Length	2nd Contact Gender	Overall Impedance	1st Contact Gender	2nd Connector	Style	Length
Amphenol Custom Cable Q-1T03H0005036i	Bulkhead - Front Side Nut	Right Angle SMB Jack	4 GHz	Panel Mount	Copper	Bulkhead - Front Side Nut	RG-316	Shielded	Panel Mount	91.44 cm	36 in	Female	50 Ohms	Male	N-Type Jack	SMB to N-Type
Amphenol Custom Cable Q-1T03H0005060i	Bulkhead - Front Side Nut	Right Angle SMB Jack	4 GHz	Panel Mount	Copper	Bulkhead - Front Side Nut	RG-316	Shielded	Panel Mount	1.5 m	5 '	Female	50 Ohms	Male	N-Type Jack	SMB to N-Type	5 ft
Amphenol Custom Cable Q-1T03H0003084i	Bulkhead - Front Side Nut	Right Angle SMB Jack	4 GHz	Panel Mount	Black	Bulkhead - Front Side Nut	RG-174	Shielded	Panel Mount	2.1 m	84 in	Female	50 Ohms	Male	N-Type Jack	SMB to N-Type	7 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMB to N-Type RG-316 36.00" (914.40mm)
