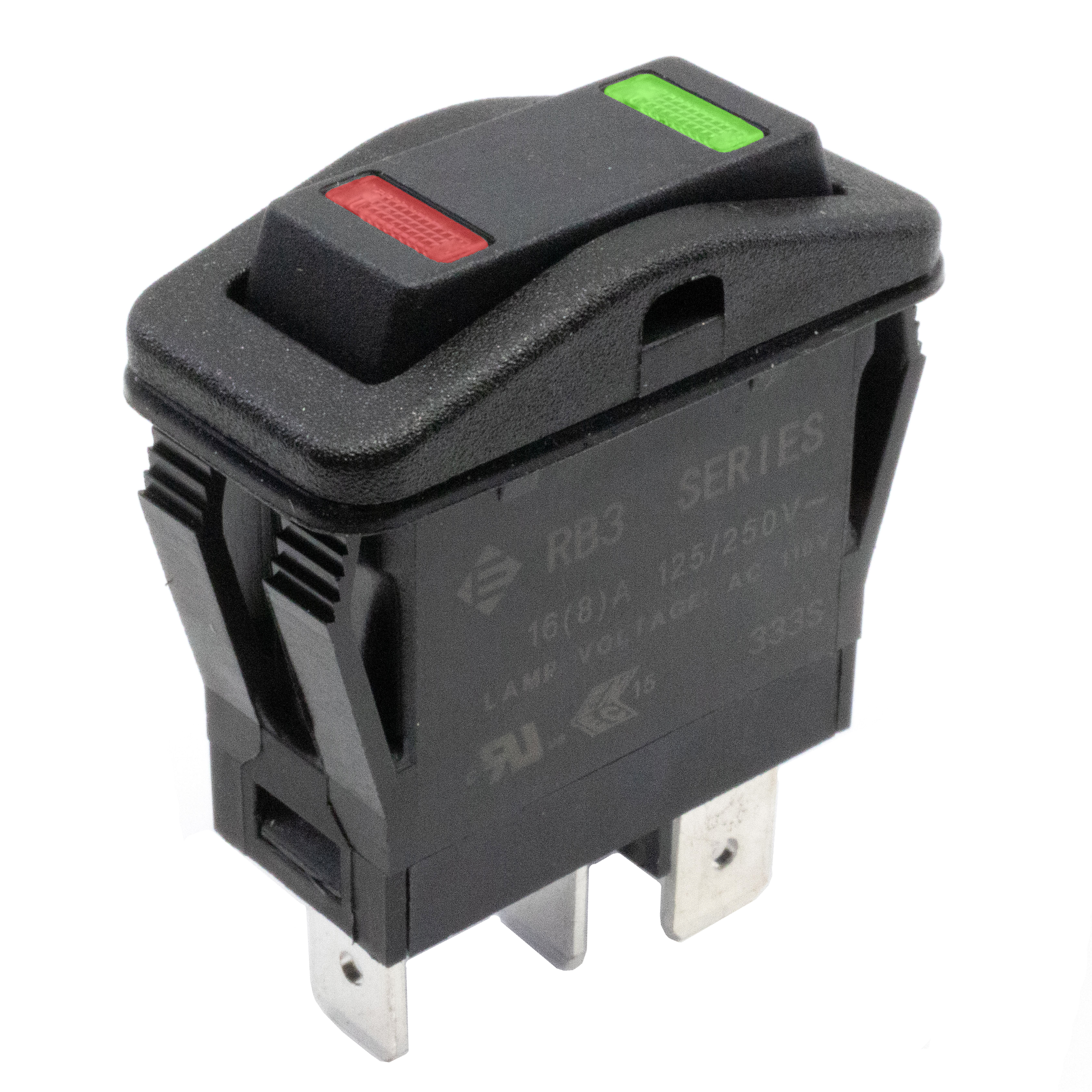

RB346A1100-136
ActiveE-Switch
SWITCH ROCKER SPDT 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB346A1100-136 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat - Illuminated |
| Approval Agency | ENEC, cULus |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 125 VAC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30.2 mm |
| Panel Cutout Dimensions [y] | 13.8 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.08 | |
| 10 | $ 6.37 | |||
| 25 | $ 6.05 | |||
| 50 | $ 5.79 | |||
| 100 | $ 5.60 | |||
| 250 | $ 5.31 | |||
| 500 | $ 4.87 | |||
| 1000 | $ 4.64 | |||
Description
General part information
RB346A1 Series
Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In
