BPJJ03AUX

Active

Switchcraft Inc.

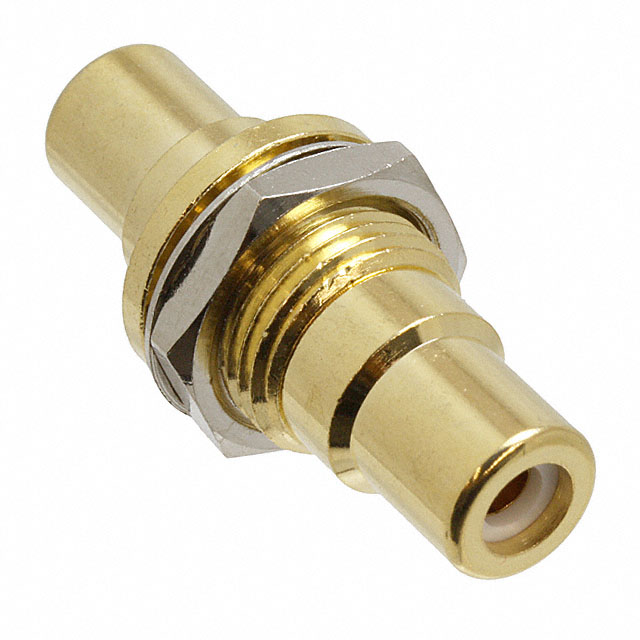

ADAPT RCA JACK TO RCA JACK

Search across all available documentation for this part.

Active

Switchcraft Inc.

ADAPT RCA JACK TO RCA JACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPJJ03AUX	BPJJ03 Series

Actual Diameter [diameter]	0.126 in, 0.327 in	0.126 - 0.327 in
Actual Diameter [diameter]	8.3 mm, 3.2 mm	3.2 - 8.3 mm
Body Finish	Gold	Nickel, Gold
Body Material	Brass	Brass
Contact Material - Plating [custom]	Nickel	Nickel
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Phono (RCA) Jack	Phono (RCA) Jack
Convert To (Adapter End)	Phono (RCA) Jack	Phono (RCA) Jack
Features	Mounting Hardware	Mounting Hardware
Gender	Female to Female	Female to Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Insulation Color	White	White
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions/Contacts	2 Conductors	2 Conductors
Shielding	Unshielded	Unshielded

RCA Phono Connectors BLKHD PHON JK/JK WH

Part	Convert To (Adapter End)	Shielding	Body Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender	Mounting Feature	Convert From (Adapter End)	Conversion Type	Includes	Number of Positions/Contacts	Body Finish	Contact Material - Plating [custom]	Insulation Color	Features
Switchcraft Inc. BPJJ03X	Phono (RCA) Jack	Unshielded	Brass	0.126 in, 0.327 in	3.2 mm, 8.3 mm	Female to Female	Bulkhead - Rear Side Nut	Phono (RCA) Jack	Same Series	Connector, Nut, Washer	2 Conductors	Nickel	Nickel	White	Mounting Hardware
Switchcraft Inc. BPJJ03AUX	Phono (RCA) Jack	Unshielded	Brass	0.126 in, 0.327 in	3.2 mm, 8.3 mm	Female to Female	Bulkhead - Rear Side Nut	Phono (RCA) Jack	Same Series	Connector, Nut, Washer	2 Conductors	Gold	Nickel	White	Mounting Hardware

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RCA Phono Connectors BLKHD PHON JK/JK WH
