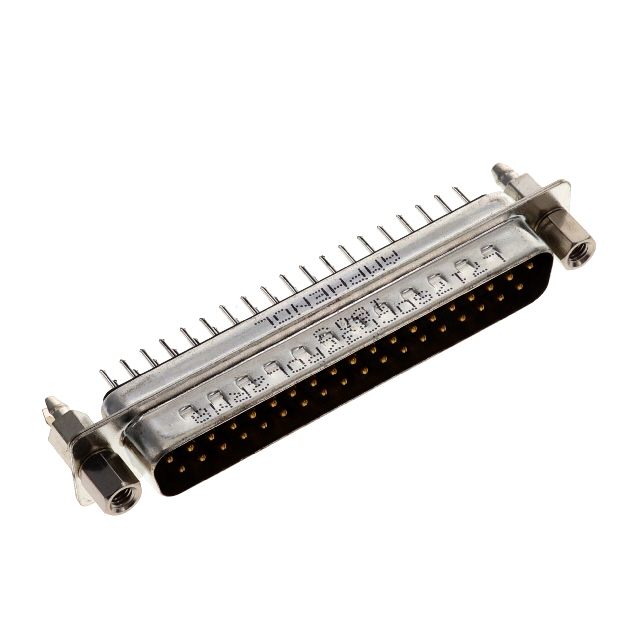

L717SDCG37POL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717SDCG37POL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDCG37POL2RM8

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature [custom]	Board Side (M3)
Flange Feature [custom]	Mating Side, Female Screwlock (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	250 VDC

L717SDCG37 Series

Part	Contact Form	Dielectric Material	Color	Voltage Rating	Features	Shell Size, Connector Layout	Contact Finish Thickness	Material Flammability Rating	Connector Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Flange Feature	Current Rating (Amps)	Connector Type	Contact Type	Termination	Number of Positions	Number of Rows	Wire Gauge	Flange Feature [custom]	Flange Feature [custom]	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717SDCG37POL2G	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Grounding Indents	4 (DC C)	Flash	UL94 V-0	D-Sub	Brass	-55 °C	125 °C	Gold	Through Hole	Board Side (M3)	3 A	Male Pins Plug	Signal	Solder	37	2
Amphenol ICC (Commercial Products) L717SDCG37P	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Grounding Indents	4 (DC C)	Flash	UL94 V-0	D-Sub	Brass	-55 °C	105 ░C	Gold	Free Hanging (In-Line)	Cable Side (M3)	3 A	Male Pins Plug	Signal		37	2	20 AWG
Amphenol ICC (Commercial Products) L717SDCG37POL2RM8	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Board Lock Grounding Indents	4 (DC C)	Flash	UL94 V-0	D-Sub	Brass	-55 °C	125 °C	Gold	Through Hole		3 A	Male Pins Plug	Signal	Solder	37	2		Board Side (M3)	Mating Side Female Screwlock (M3)
Amphenol ICC (Commercial Products) L717SDCG37PC309	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Grounding Indents	4 (DC C)		UL94 V-0	D-Sub	Brass	-55 °C	125 °C	Gold	Free Hanging (In-Line)	Cable Side (M3)	3 A	Male Pins Plug	Signal		37	2				0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDCG37POL2RM5G	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Board Lock Grounding Indents	4 (DC C)	Flash	UL94 V-0	D-Sub	Brass	-55 °C	125 °C	Gold	Through Hole	Board Side (M3)	3 A	Male Pins Plug	Signal	Solder	37	2
Amphenol ICC (Commercial Products) L717SDCG37POL2RM8C309	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Board Lock Grounding Indents	4 (DC C)		UL94 V-0	D-Sub	Brass	-55 °C	125 °C	Gold	Through Hole		3 A	Male Pins Plug	Signal	Solder	37	2		Board Side (M3)	Mating Side Female Screwlock (M3)	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDCG37POL2RM5GC309	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Board Lock Grounding Indents	4 (DC C)		UL94 V-0	D-Sub	Brass	-55 °C	125 °C	Gold	Through Hole	Board Side (M3)	3 A	Male Pins Plug	Signal	Solder	37	2				0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDCG37POL2RM5C309	Stamped	Thermoplastic Glass Filled	Black	250 VDC	Board Lock Grounding Indents	4 (DC C)		UL94 V-0	D-Sub	Brass	-55 °C	125 °C	Gold	Through Hole	Board Side (M3)	3 A	Male Pins Plug	Signal	Solder	37	2				0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.07
		10	$ 3.11
		25	$ 2.80
		40	$ 2.66
		80	$ 2.46
		230	$ 2.20
		440	$ 2.06
		945	$ 1.90
		2400	$ 1.74

Description

General part information

L717SDCG37 Series

37 Position D-Sub Plug, Male Pins Connector
