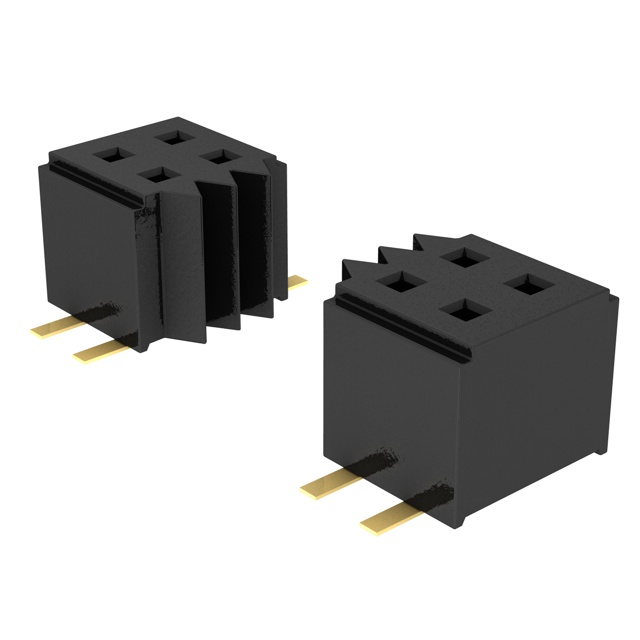

CLM-107-02-H-D-TR

Active

Samtec Inc.

CONN MICRO SOCKET STRIP SKT 14 POS 1MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLM-107-02-H-D-TR

Active

Samtec Inc.

CONN MICRO SOCKET STRIP SKT 14 POS 1MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLM-107-02-H-D-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder

CLM-107 Series

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Connector Type	Insulation Color	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Features	Contact Material	Contact Finish - Post	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Height	Insulation Height
Samtec Inc. CLM-107-02-G-D-A	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All	3 µin	0.076 µm	0.039 in	1 mm	14	Board Guide	Phosphor Bronze	Gold	Push-Pull	Surface Mount	10 çin	0.25 çm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-F-D-PA-TR	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14	Pick and Place	Phosphor Bronze	Tin	Push-Pull	Surface Mount	3 µin	0.076 µm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-L-D-TR	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14		Phosphor Bronze	Tin	Push-Pull	Surface Mount	10 çin	0.25 çm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-F-D-BE-P-TR	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle Bottom Entry	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14	Pick and Place	Phosphor Bronze	Tin	Push-Pull	Surface Mount	3 µin	0.076 µm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-L-D-BE-A-K	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle Bottom Entry	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14	Board Guide Pick and Place	Phosphor Bronze	Tin	Push-Pull	Surface Mount	10 çin	0.25 çm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-H-D-TR	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All	3 µin	0.076 µm	0.039 in	1 mm	14		Phosphor Bronze	Gold	Push-Pull	Surface Mount	30 Áin	0.76 Ám	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-LM-D-P-TR	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14	Pick and Place	Phosphor Bronze	Tin	Push-Pull	Surface Mount	10 çin	0.25 çm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-LM-D	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14		Phosphor Bronze	Tin	Push-Pull	Surface Mount	10 çin	0.25 çm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-L-D-BE-K-TR	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle Bottom Entry	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14	Pick and Place	Phosphor Bronze	Tin	Push-Pull	Surface Mount	10 çin	0.25 çm	2	0.084 in	2.14 mm
Samtec Inc. CLM-107-02-FM-D-PA-TR	Solder	-55 °C	125 °C	Square	UL94 V-0	Female Socket	0.039 "	1 mm	Gold	Receptacle	Black	Liquid Crystal Polymer (LCP)	2.8 A per Contact	All			0.039 in	1 mm	14	Pick and Place	Phosphor Bronze	Tin	Push-Pull	Surface Mount	3 µin	0.076 µm	2	0.084 in	2.14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1600	$ 3.35

Description

General part information

CLM-107 Series

14 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
