8334 060500

Active

Belden Inc.

MULTI-PAIR 8CON 24AWG CHROM

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8CON 24AWG CHROM

Technical Specifications

Parameters and characteristics for this part

Specification	8334 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Length [x]	Length [x]	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Conductor Insulation	Shield Material	Shield Coverage	Usage	Number of Conductors	Cable Type	Length	Length
Belden Inc. 8334 060500	Braid Foil	-30 ░C	80 C	24 AWG	32 AWG	7	0.889 mm	0.035 in	UL Style 2464	500 '	152.4 m	300 V	Copper Tinned	0.272 in	6.91 mm	Chrome	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	65 % 100 %	Computer	8	Multi-Pair
Belden Inc. 8334 0601000	Braid Foil	-30 ░C	80 C	24 AWG	32 AWG	7	0.889 mm	0.035 in	UL Style 2464			300 V	Copper Tinned	0.272 in	6.91 mm	Chrome	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	65 % 100 %	Computer	8	Multi-Pair	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.86

General part information

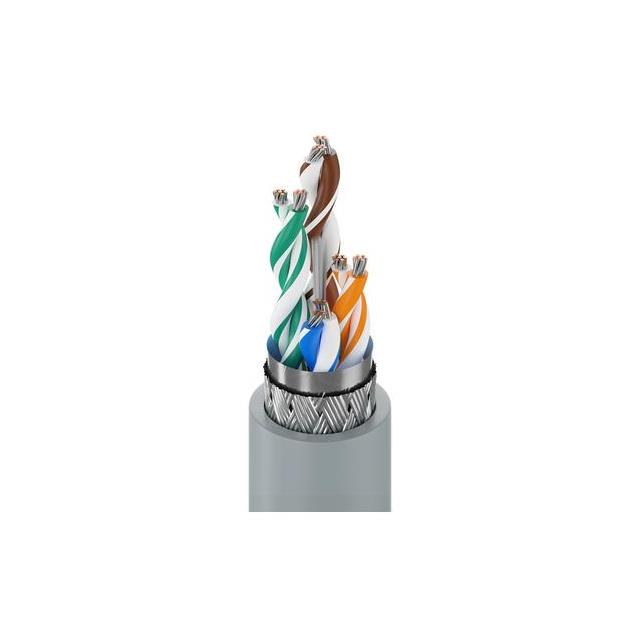

8 (4 Pair) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
