8418002XA
ActiveIC VREF SHUNT 5V TO46-3
Deep-Dive with AI
Search across all available documentation for this part.
8418002XA
ActiveIC VREF SHUNT 5V TO46-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8418002XA |
|---|---|
| Current - Cathode | 600 µA |
| Current - Output | 10 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Output Type | 27.03 °C/W |

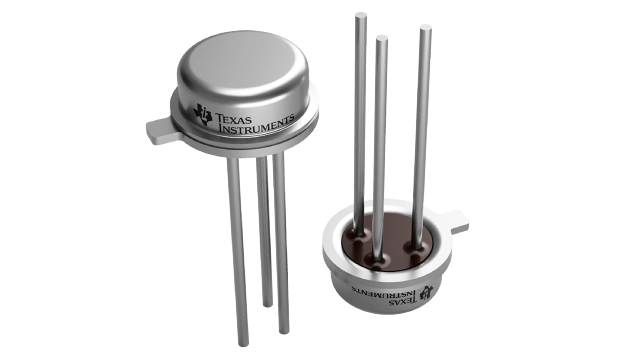

| Package / Case | TO-206AB, TO-46-3 Metal Can |
| Reference Type | Shunt |
| Supplier Device Package | TO-46-3 |
| Tolerance [Max] | 1 % |
| Tolerance [Min] | -1 % |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LM136A-5.0QML Series
5.0V Reference Diode
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance [Max] | Tolerance [Min] | Reference Type | Current - Output | Current - Cathode | Voltage - Output (Min/Fixed) | Supplier Device Package | Mounting Type | Package / Case | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments 8418002XAThe LM136A-5.0QML/LM136-5.0QML integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.
The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
The LM136A-5.0QML/LM136-5.0QML integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.
The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference. | -55 C | 125 °C | 1 % | -1 % | Shunt | 10 mA | 600 µA | 5 V | TO-46-3 | Through Hole | TO-206AB, TO-46-3 Metal Can | 27.03 °C/W |
Description
General part information
LM136A-5.0QML Series
The LM136A-5.0QML/LM136-5.0QML integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.
The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
The LM136A-5.0QML/LM136-5.0QML integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.
