X-NUCLEO-IHM11M1
ActiveLOW VOLTAGE THREE-PHASE BRUSHLESS DC MOTOR DRIVER EXPANSION BOARD BASED ON STSPIN230 FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-IHM11M1
ActiveLOW VOLTAGE THREE-PHASE BRUSHLESS DC MOTOR DRIVER EXPANSION BOARD BASED ON STSPIN230 FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-IHM11M1 | X-NUCLEO-IHM11M1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Motor Controller/Driver | Motor Controller/Driver |
| Platform | Nucleo | Nucleo |
| Type | Power Management | Power Management |
| Utilized IC / Part | STSPIN230 | STSPIN230 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-IHM11M1 Series
Low voltage three-phase brushless DC motor driver expansion board based on STSPIN230 for STM32 Nucleo
| Part | Contents | Type | Platform | Utilized IC / Part | Function |
|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-IHM11M1 | |||||
STMicroelectronics X-NUCLEO-IHM11M1 | |||||
STMicroelectronics X-NUCLEO-IHM11M1 | Board(s) | Power Management | Nucleo | STSPIN230 | Motor Controller/Driver |
Description
General part information
X-NUCLEO-IHM11M1 Series

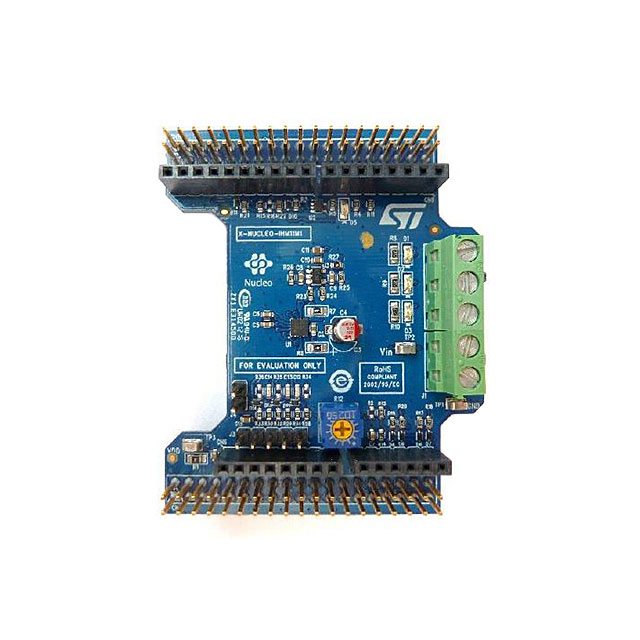

The X-NUCLEO-IHM11M1 is a low voltage three-phase brushless DC motor driver expansion board based on the STSPIN230 for STM32 Nucleo.
It provides an affordable and easy-to-use solution for the implementation of portable motor driving applications such as thermal printers, robotics and toys.
The X-NUCLEO-IHM11M1 is compatible with the Arduino UNO R3 connector and most STM32 Nucleo boards.
