0034.1516.PT

Active

SCHURTER Inc.

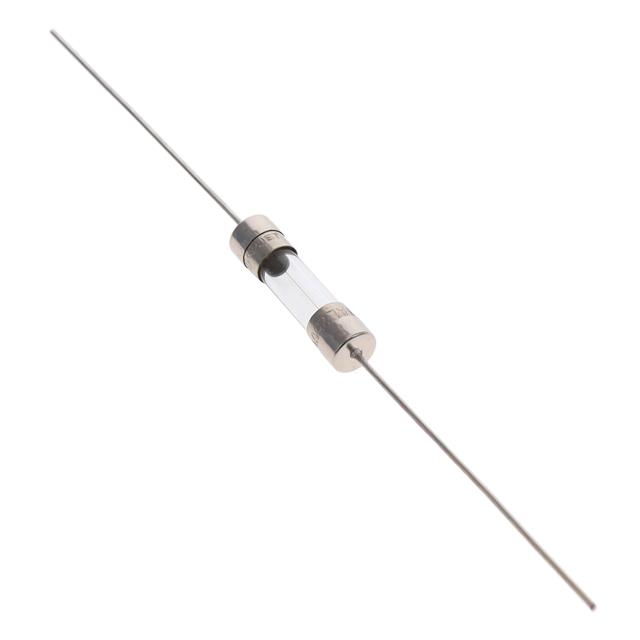

FUSE GLASS 1A 250VAC 5X20MM

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE GLASS 1A 250VAC 5X20MM

Technical Specifications

Parameters and characteristics for this part

Specification	0034.1516.PT

Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	1 A
Melting I²t	1.13
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Fast Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V

FUSE GLASS 1A 250VAC 5X20MM

Part	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case [x]	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Mounting Type	Response Time	Melting I²t
SCHURTER Inc. 0034.1516.PT	250 V	0.886 "	22.5 mm	5.4 mm	0.213 in	5 mm	20 mm	-55 °C	125 °C	35 A	1 A	Through Hole	Fast Blow	1.13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 A 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
