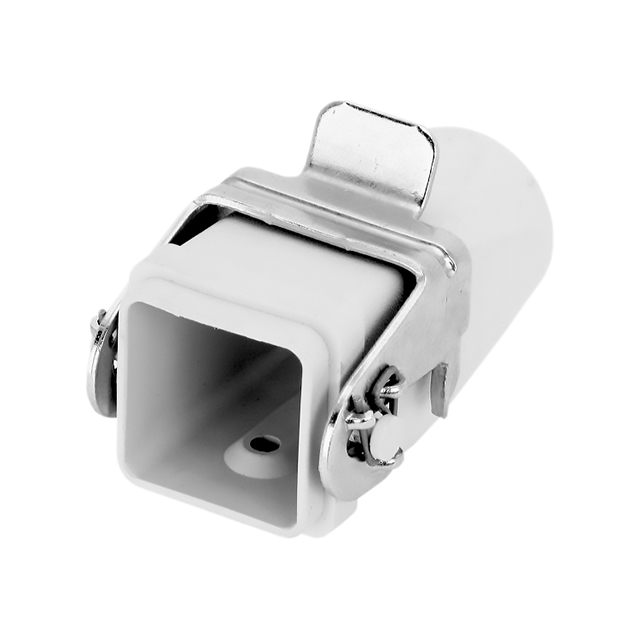

C14610R0038044

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZA3/4

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZA3/4

Technical Specifications

Parameters and characteristics for this part

Specification	C14610R0038044

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Material	Polyamide (PA), Nylon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	1.043 "
Size / Dimension [y]	26.5 mm
Size / Dimension [z]	1.969 in
Size / Dimension [z]	50 mm
Style	Bottom Entry
Thread Size	M20

Part	Housing Color	Ingress Protection	Style	Thread Size	Connector Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size	Features
Amphenol Tuchel Industrial C14610R0038044	Gray	IP65 - Dust Tight Water Resistant	Bottom Entry	M20	Hood - Coupling	Polyamide (PA) Nylon	100 °C	-40 °C	Locking Clip (1) on Hood	1.043 "	26.5 mm	1.969 in	1.043 in	26.5 mm	50 mm	A3/4	Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Bottom Entry M20 A3/4 IP65 - Dust Tight, Water Resistant
