K20F1C-P09LCC0-400S

Active

ODU

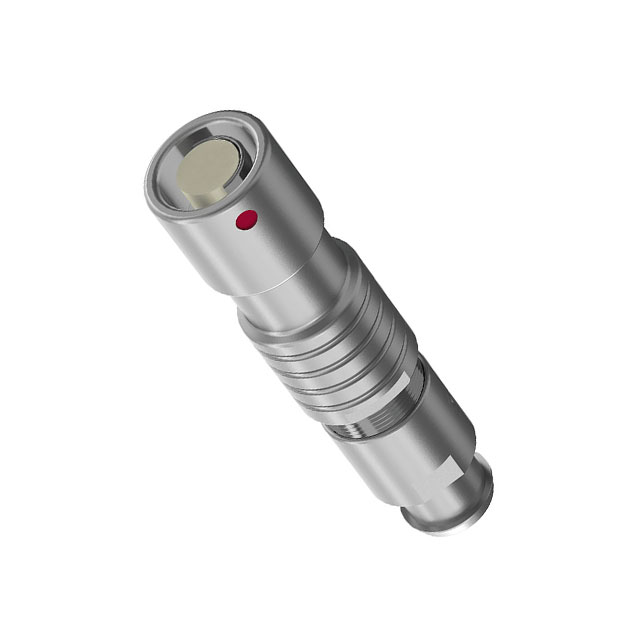

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsODU MINI-SNAP F Assembly Instruction Datasheet +1

K20F1C-P09LCC0-400S

Active

ODU

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

DocumentsODU MINI-SNAP F Assembly Instruction Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K20F1C-P09LCC0-400S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.157 in
Cable Opening [Max] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.138 in
Cable Opening [Min] [diameter]	3.5 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0

K20F1C-P Series

Part	Current Rating (Amps)	Color	Primary Material	Applications	Fastening Type	Mounting Type	Backshell Material, Plating	Number of Positions	Contact Finish - Mating	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Ingress Protection	Shielding	Shell Material	Insert Material	Contact Material	Material Flammability Rating	Voltage Rating	Features	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]
ODU K20F1C-P07LCC0-250S	4 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel	7	Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1	0.098 in	2 mm	0.079 in	2.5 mm	IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	300 VDC	Backshell Strain Relief
ODU K20F1C-P05LFG0-300S	7.5 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel		Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1					IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	200 V	Backshell Strain Relief	0.118 in	0.098 in	3 mm	2.5 mm
ODU K20F1C-P07LCC0-350S	4 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel	7	Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1					IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	300 VDC	Backshell Strain Relief	0.138 in	0.118 in		3 mm	3.5 mm
ODU K20F1C-P09LCC0-250S	4 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel	9	Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1	0.098 in	2 mm	0.079 in	2.5 mm	IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	300 VDC	Backshell Strain Relief
ODU K20F1C-P09LCC0-400S	4 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel	9	Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1					IP50		Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0		Backshell Strain Relief	0.157 in	0.138 in		3.5 mm	4 mm
ODU K20F1C-P09LCC0-150S	4 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel	9	Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1					IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	300 VDC	Backshell Strain Relief						0.039 in 0.059 in	1 mm 1.5 mm
ODU K20F1C-P07LCC0-200S	4 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel	7	Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1	0.079 in	1.5 mm	0.059 in		IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	300 VDC	Backshell Strain Relief								2 mm
ODU K20F1C-P07MCC0-400S	4 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel	7	Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1					IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	300 VDC	Backshell Strain Relief	0.157 in	0.138 in		3.5 mm	4 mm
ODU K20F1C-P05LFG0-350S	7.5 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel		Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1					IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	200 V	Backshell Strain Relief	0.138 in	0.118 in		3 mm	3.5 mm
ODU K20F1C-P05LFG0-200S	7.5 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Free Hanging (In-Line)	Brass Chrome over Nickel		Gold	Chrome over Nickel	-40 °C	120 °C	Receptacle Female Sockets	1	0.079 in	1.5 mm	0.059 in		IP50	Unshielded	Brass	Polyetheretherketone (PEEK)	Brass	UL94 V-0	200 V	Backshell Strain Relief								2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.11
		10	$ 28.65

Description

General part information

K20F1C-P Series

9 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

ODU MINI-SNAP F Assembly Instruction

Datasheet

ODU MINI-SNAP Series F Catalog

Datasheet
