880683-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-20AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-20AWG 0.250

Technical Specifications

Parameters and characteristics for this part

CONN QC RCPT 17-20AWG 0.250

Part	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Termination	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Tab Width	Tab Width	Gender
TE Connectivity AMP Connectors 880683-1	2 mm	3.3 mm	0.13 in	0.079 in	Crimp	0.303 in	7.7 mm	0.032 in	0.81 mm	Brass	Non-Insulated	16.31 mm	0.642 in	Standard	17 AWG	20 AWG	Free Hanging (In-Line)	6.35 mm	0.25 in	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

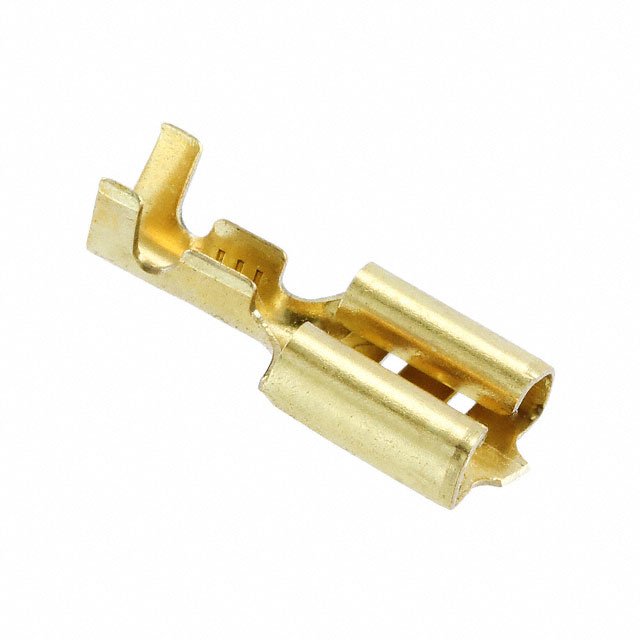

0.250" (6.35mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
