Connectors, Interconnects
880683-1
ActiveTE Connectivity Raychem Cable Protection

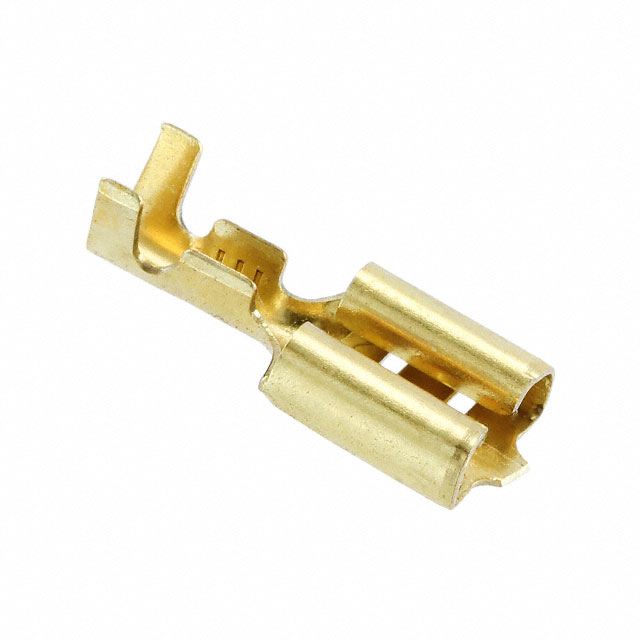

CONN QC RCPT 17-20AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 880683-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in |
| Insulation Diameter [Min] | 2 mm |
| Insulation Diameter [Min] | 0.079 in |
| Length - Overall [x] | 16.31 mm |
| Length - Overall [x] | 0.642 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.303 in |
| Tab Length | 7.7 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.10 | |||
| Tape & Reel (TR) | 500000 | $ 0.06 | ||
Description
General part information
880683 Series
0.250" (6.35mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
