H3KKH-1618M

Active

Assmann WSW Components

IDC CBL - HHPK16H/AE16M/HHPK16H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHPK16H/AE16M/HHPK16H

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Color	Connector Type	Shielding	Contact Finish	Length [x]	Length [x]	Number of Rows	Features	Length	Length	Length
Assmann WSW Components H3KKH-1618M	16	0.1 in	2.54 mm	0.05 "	1.27 mm	15 µin	0.38 µm	IDC	Multiple Ribbon	Plug to Plug	Unshielded	Gold	457.2 mm	1.5 ft	2	Polarizing Key
Assmann WSW Components H3KKH-1636M	16	0.1 in	2.54 mm	0.05 "	1.27 mm	15 µin	0.38 µm	IDC	Multiple Ribbon	Plug to Plug	Unshielded	Gold	914.4 mm	3 ft	2	Polarizing Key
Assmann WSW Components H3KKH-1618G	16	0.1 in	2.54 mm	0.05 "	1.27 mm	15 µin	0.38 µm	IDC		Plug to Plug	Unshielded	Gold	457.2 mm	1.5 ft	2	Polarizing Key
Assmann WSW Components H3KKH-1636G	16	0.1 in	2.54 mm	0.05 "	1.27 mm	15 µin	0.38 µm	IDC		Plug to Plug	Unshielded	Gold	914.4 mm	3 ft	2	Polarizing Key
Assmann WSW Components H3KKH-1606M	16	0.1 in	2.54 mm	0.05 "	1.27 mm	15 µin	0.38 µm	IDC	Multiple Ribbon	Plug to Plug	Unshielded	Gold			2	Polarizing Key	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

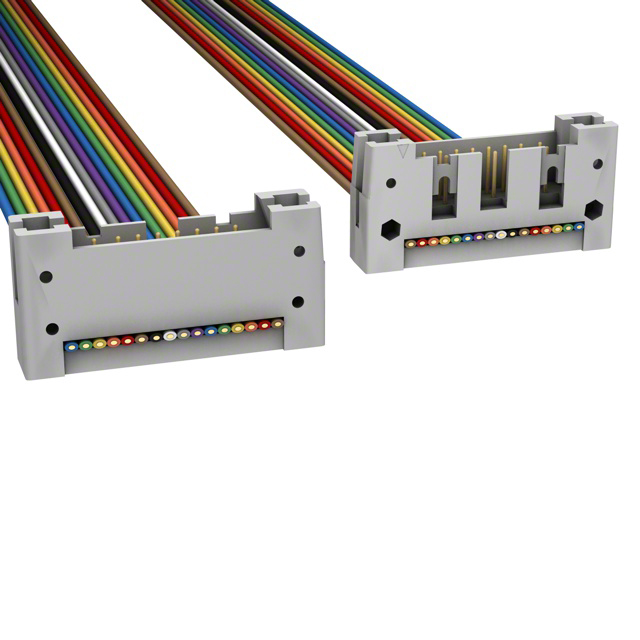

16 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)
