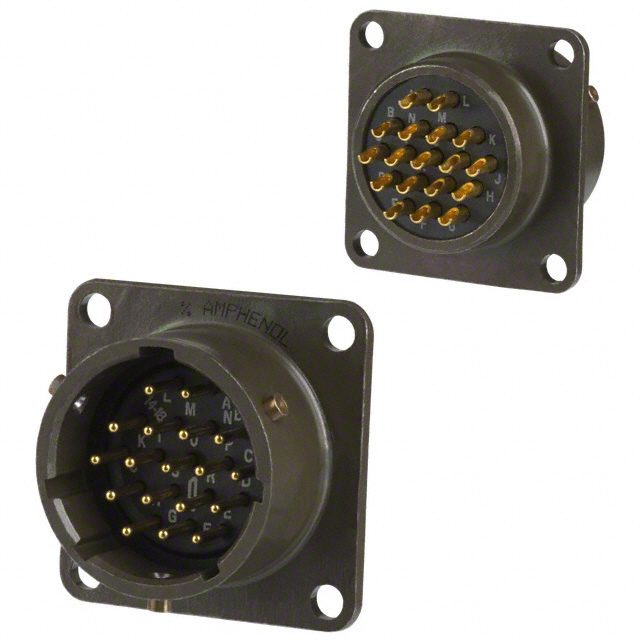

MS3112E-14-18P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 18P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3112E-14-18P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 18P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3112E-14-18P | MS3112E14 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 18 | 12 - 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W, Y, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 14-12, 14-5 |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert [Max] | 18 | 15 - 18 |
| Shell Size - Insert [Min] | 14 | 14 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.00 | |
| 10 | $ 23.37 | |||
| 25 | $ 21.12 | |||
| 50 | $ 16.88 | |||
| 250 | $ 16.57 | |||
| 500 | $ 16.16 | |||
| 1000 | $ 15.76 | |||
MS3112E14 Series
CONN RCPT FMALE 18P GOLD SLD CUP
| Part | Mounting Feature | Shell Finish | Ingress Protection | Orientation | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Contact Material | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Fastening Type | Grade | Applications | Color | Connector Type | Shielding | Insert Material | Qualification | Primary Material | Number of Positions | Shell Size - Insert | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3112E14-18S | Flange | Olive Drab Chromate over Cadmium | Environment Resistant | N | 14 | 18 | Copper Alloy | Aluminum | -55 °C | 125 °C | Gold | Bayonet Lock | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Receptacle, Female Sockets | Unshielded | Neoprene | MIL-DTL-26482 Series I | Metal | 18 | |||
Amphenol Industrial Operations MS3112E14-12S | Flange | Olive Drab Chromate over Cadmium | Environment Resistant | N | Copper Alloy | Aluminum | -55 °C | 125 °C | Gold | Bayonet Lock | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Receptacle, Female Sockets | Unshielded | Neoprene | MIL-DTL-26482 Series I | Metal | 12 | 14-12 | ||||
Amphenol Industrial Operations MS3112E14-15S | Flange | Olive Drab Chromate over Cadmium | Environment Resistant | N | 14 | 15 | Copper Alloy | Aluminum | -55 °C | 125 °C | Gold | Bayonet Lock | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Receptacle, Female Sockets | Unshielded | Neoprene | MIL-DTL-26482 Series I | Metal | 15 | |||
Amphenol Industrial Operations MS3112E14-19P W/P CAP | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3112E14-5S | Flange | Olive Drab Chromate over Cadmium | Environment Resistant | N | Copper Alloy | Aluminum | -55 °C | 125 °C | Gold | Bayonet Lock | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Receptacle, Female Sockets | Unshielded | Neoprene | MIL-DTL-26482 Series I | Metal | 14-5 | |||||
Amphenol Industrial Operations MS3112E14-19P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3112E14-15PW | Flange | Olive Drab Chromate over Cadmium | Environment Resistant | W | 14 | 15 | Copper Alloy | Aluminum | -55 °C | 125 °C | Gold | Bayonet Lock | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Male Pins, Receptacle | Unshielded | Neoprene | MIL-DTL-26482 Series I | Metal | 15 | |||
Amphenol Industrial Operations MS3112E14-15SX | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3112E-14-18P | Flange | Olive Drab Chromate over Cadmium | Environment Resistant | N | 14 | 18 | Copper Alloy | Aluminum | -55 °C | 125 °C | Gold | Bayonet Lock | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Male Pins, Receptacle | Unshielded | Neoprene | MIL-DTL-26482 Series I | Metal | 18 | |||
Amphenol Industrial Operations MS3112E14-5PW | Flange | Olive Drab Chromate over Cadmium | Environment Resistant | W | Copper Alloy | Aluminum | -55 °C | 125 °C | Gold | Bayonet Lock | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | Male Pins, Receptacle | Unshielded | Neoprene | MIL-DTL-26482 Series I | Metal | 14-5 |
Description
General part information
MS3112E14 Series
18 Position Circular Connector Receptacle, Male Pins Solder Cup
