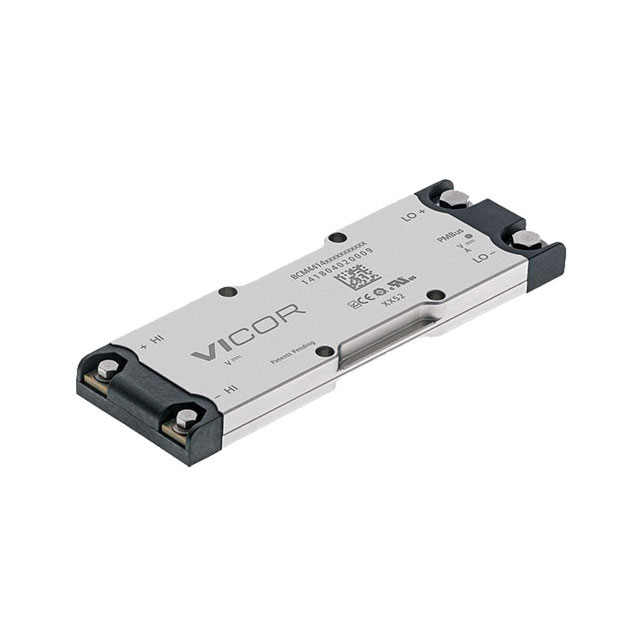

BCM3814V60E15A3C02

Obsolete

Vicor Corporation

DC/DC CONVERTER 13.5V 1755W

Search across all available documentation for this part.

Obsolete

Vicor Corporation

DC/DC CONVERTER 13.5V 1755W

Technical Specifications

Parameters and characteristics for this part

DC/DC CONVERTER 13.5V 1755W

Part	Power (Watts)	Number of Outputs	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Output 1	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Applications	Voltage - Input (Max) [Max]
Vicor Corporation BCM3814V60E15A3C02	1755 W	1	CE	0.37 in	3.76 in	35.5 mm	9.4 mm	1.4 in	95.6 mm	Enclosed	13.5 V	130 A	100 °C	-20 C	36 V	97.4 %	Chassis Mount	ITE (Commercial)	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed DC DC Converter 1 Output 13.5V 130A 60V Input
