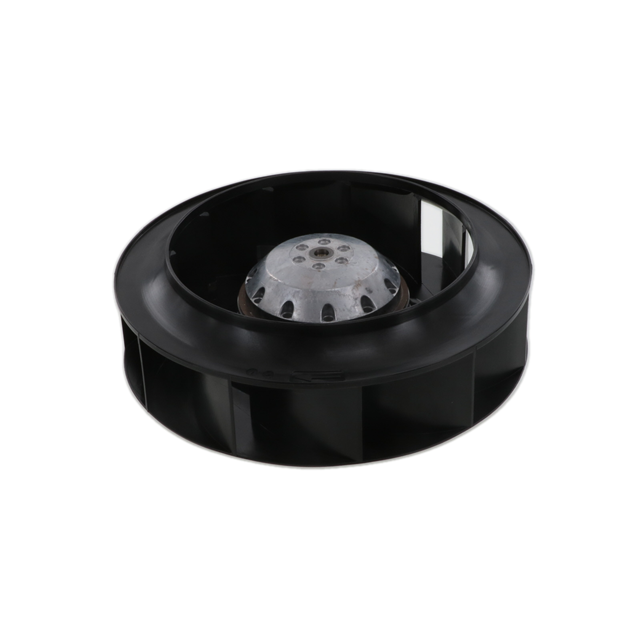

R2E220-AA40-71

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R2E220-AA40-71

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R2E220-AA40-71

Approval Agency	EAC, CCC, UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps)	400 mA
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Polyamide (PA6), Nylon 6, Fiberglass Reinforced
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	90 W
RPM	2700 RPM
Size / Dimension	Round
Size / Dimension [diameter]	221.4 mm
Termination	4 Wire Leads with Splice Terminals, 3 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [x]	71 mm

R2E220 Series

Part	Power (Watts)	Termination	Weight	Weight	Fan Type	Air Flow	Air Flow	Voltage - Rated	Ingress Protection	Material - Blade	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Width [x]	Bearing Type	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature	Operating Temperature	Noise
ebm-papst Inc. R2E220-RA38-13	107 W	4 Wire Leads	2.9 lbs	1.3 kg	Motorized Impellers	541.5 CFM	15.16 mł/min	230 VAC	IP44	Fiberglass Reinforced Nylon Polyamide (PA)	Round	220 mm	UL	71 mm	Ball	2050 RPM	-25 °C	60 °C
ebm-papst Inc. R2E220-AA40-71	90 W	3 Wire Leads with Splice Terminals 4 Wire Leads with Splice Terminals			Motorized Impellers			230 VAC	IP44	Polyamide (PA6) Nylon 6 Fiberglass Reinforced	Round	221.4 mm	CCC CE CSA EAC UL	71 mm	Ball	2700 RPM	-25 °C	40 °C	40 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)	400 mA
ebm-papst Inc. R2E220-RA44-14	108 W	4 Wire Leads	2.9 lbs	1.3 kg	Motorized Impellers	529.7 CFM	14.83 m³/min	115 VAC	IP44	Fiberglass Reinforced Nylon Polyamide (PA)	Round	220 mm	UL	71 mm	Ball	2100 RPM	-25 °C	60 °C					130 VAC	100 VAC
ebm-papst Inc. R2E220-RB06-01	135 W	4 Wire Leads with Splice Terminals			Motorized Impellers			230 VAC	IP44	Nylon Polyamide (PA)	Round	220 mm	CCC CE EAC		Ball	2650 RPM	-25 °C	75 ░C	75 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)	600 mA
ebm-papst Inc. R2E220-AA40-80	90 W	4 Wire Leads with Splice Terminals	3.1 lbs	1.4 kg	Motorized Impellers	530 CFM	14.84 mł/min	230 VAC	IP44	Polyamide (PA6) Nylon 6	Round	220 mm	CCC CE CSA	71 mm	Ball	2700 RPM					Capacitor Thermal Overload Protector (TOP)	400 mA			55 °C	131 °F	74 dB(A)
ebm-papst Inc. R2E220-AA40-05	90 W	4 Wire Leads with Splice Terminals			Motorized Impellers			230 VAC	IP44	Polyamide (PA6) Nylon 6 Fiberglass Reinforced	Round	220 mm	CCC CE EAC	71 mm	Ball	2700 RPM	-25 °C	40 °C	40 °C	-25 °C	Capacitor Thermal Overload Protector (TOP)	400 mA
ebm-papst Inc. R2E220-AA40-23	100 W	4 Wire Leads	2.9 lbs	1.3 kg	Motorized Impellers	530 CFM	14.84 mł/min	230 VAC		Nylon Polyamide (PA)	Round	220 mm	CCC CE CSA UL	71 mm	Ball	2550 RPM											74 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 154.03
		10	$ 137.32
		25	$ 131.17
		50	$ 126.71

Description

General part information

R2E220 Series

Fan Motorized Impellers 230VAC Round - 221.4mm Dia Ball 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals
