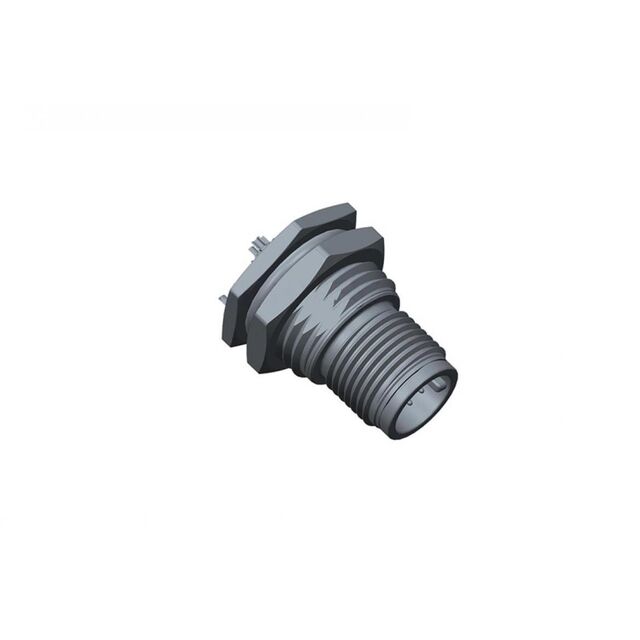

MSAP-12PMMS-SF8003
ActiveAmphenol LTW
M SERIES, M12, 4A, 03 PINS, RECE
Deep-Dive with AI
Search across all available documentation for this part.
MSAP-12PMMS-SF8003
ActiveAmphenol LTW
M SERIES, M12, 4A, 03 PINS, RECE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAP-12PMMS-SF8003 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 12 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-12 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.50 | |
| 10 | $ 9.45 | |||
| 100 | $ 8.45 | |||
| 1000 | $ 6.25 | |||
Description
General part information
MSAP-12PMMS Series
12 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
