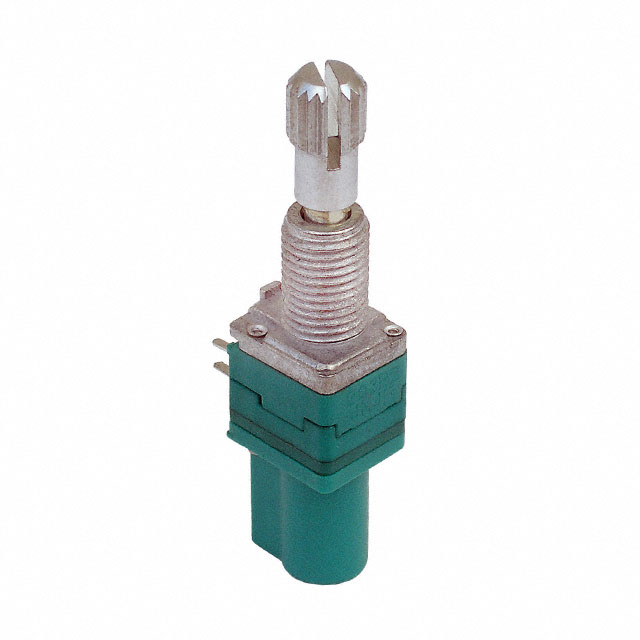

PTP901-030K-503A3

Obsolete

Bourns Inc.

POT 50K OHM 1/40W CARBON LOG

Search across all available documentation for this part.

Obsolete

Bourns Inc.

POT 50K OHM 1/40W CARBON LOG

Technical Specifications

Parameters and characteristics for this part

Part	Taper	Actuator Type	Built in Switch	Resistive Material	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Tolerance	Number of Gangs	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Termination Style	Resistance (Ohms)	Adjustment Type	Actuator Length [z]	Actuator Length [z]	Rotation	Number of Turns	Bushing Thread	Bushing Thread	Power (Watts)	Power (Watts)	Power (Watts)
Bourns Inc. PTP901-030K-503A3	Logarithmic	Knurled and Slotted		Carbon	0.236 in	6 mm	20 %	1	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	50 kOhms	Side Adjustment	30 mm	1.181 in	310 °	1	0.75	M7	0.025 W	0.025 W
Bourns Inc. PTP901-030K-203B2	Linear	Knurled and Slotted		Carbon	0.236 in	6 mm	20 %	1	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	20 kOhms	Side Adjustment	30 mm	1.181 in	310 °	1	0.75	M7	0.05 W		50 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.025W, 1/40W PC Pins, Board Locks
