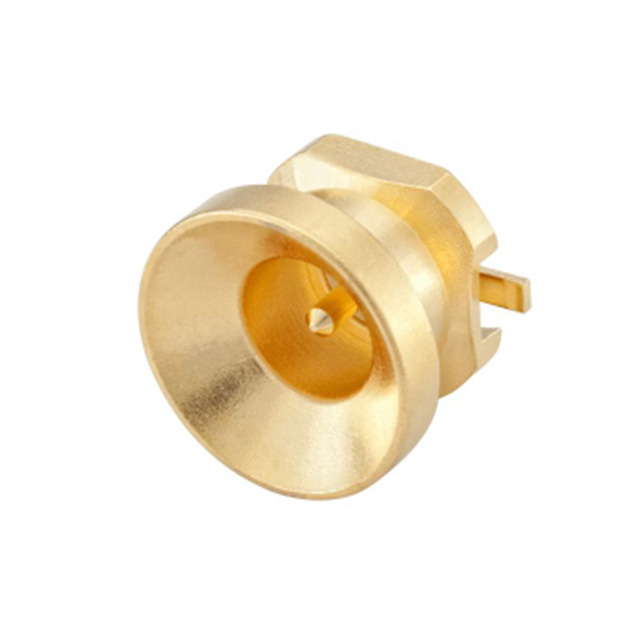

119S147-40ML5
ActiveRosenberger
CONN PSMP PLUG STR 50OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
119S147-40ML5
ActiveRosenberger
CONN PSMP PLUG STR 50OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 119S147-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | PSMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max [Max] | 10 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 4.41 | |
| 10 | $ 3.99 | |||
| 25 | $ 3.77 | |||
| 50 | $ 3.68 | |||
| 100 | $ 3.49 | |||
| 300 | $ 3.24 | |||
Description
General part information
119S147 Series
PSMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
