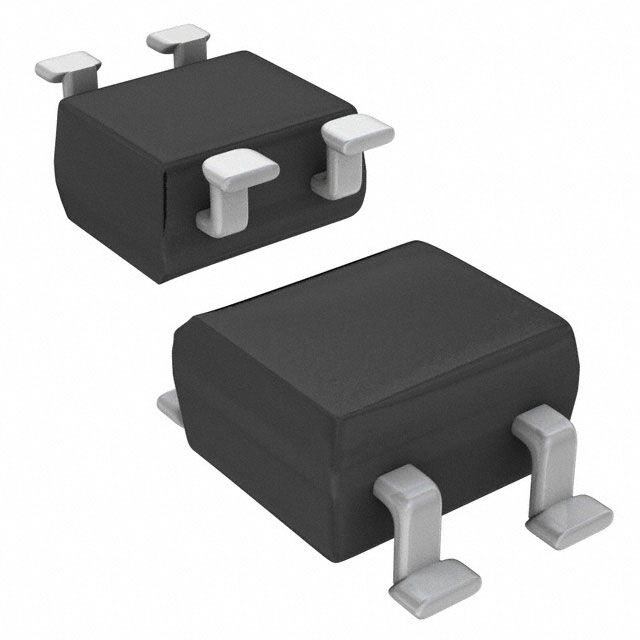

CDBHM2100L-HF

Active

Comchip Technology

BRIDGE RECT 1PHASE 100V 2A MBS-2

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 100V 2A MBS-2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDBHM2100L-HF	CDBHM2100 Series

Current - Average Rectified (Io)	2 A	2 A
Current - Reverse Leakage @ Vr	1 mA	1 mA
Diode Type	Single Phase	Single Phase
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-BESOP, TO-269AA	4-BESOP, TO-269AA
Supplier Device Package	MBS-2	MBS-2
Technology	Schottky	Schottky
Voltage - Forward (Vf) (Max) @ If	850 mV	850 mV
Voltage - Peak Reverse (Max) [Max]	100 V	100 V

RECTIFIER BRIDGE DIODE SINGLE 100V 2A 4-PIN CASE MBS-2 T/R

Part	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Package / Case
Comchip Technology CDBHM2100L-G	Surface Mount	1 mA	850 mV	Schottky	2 A	125 ¯C	-55 °C	Single Phase	100 V	MBS-2	4-BESOP, TO-269AA
Comchip Technology CDBHM2100L-HF	Surface Mount	1 mA	850 mV	Schottky	2 A	125 ¯C	-55 °C	Single Phase	100 V	MBS-2	4-BESOP, TO-269AA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Schottky 100 V Surface Mount MBS-2
