ODB19069-24HB10A

Active

Orion Fans

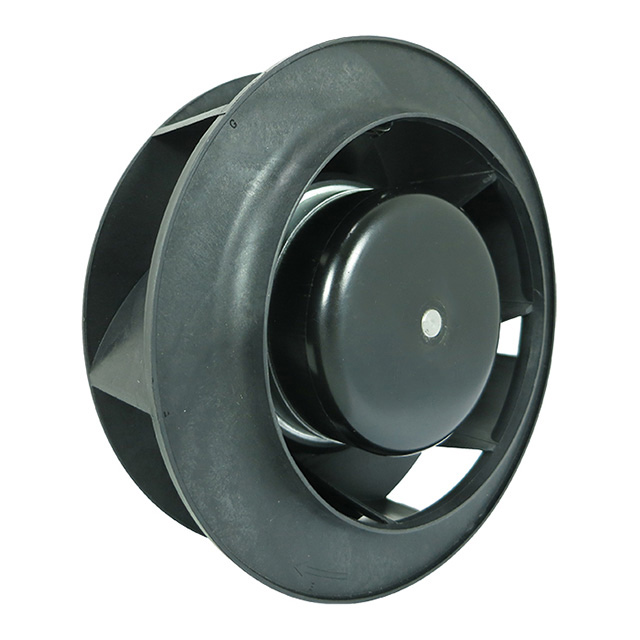

FAN BLOWER, 190MM, 108W, 24VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER, 190MM, 108W, 24VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ODB19069-24HB10A	ODB19069 Series

Air Flow	395 CFM	395 - 432 CFM
Air Flow	11.06 mł/min	11.06 - 12.1 mł/min
Approval Agency	TUV, CE, cURus, UR	TUV, CE, cURus, UR
Bearing Type	Ball	Ball
Current Rating (Amps)	4.5 A	2.55 - 4.5 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Thermoplastic	Thermoplastic
Material - Frame	Aluminum	Aluminum
Noise	75 dB(A)	75 - 77 dB(A)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	108 W	108 - 122 W
RPM	3200 RPM	3200 - 3500 RPM
Size / Dimension [diameter]	189.5 mm	189.5 mm
Static Pressure	498.2 Pa	498.2 - 700 Pa
Static Pressure	2 in H2O	2 - 2.81 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage - Rated	-	48 VDC
Voltage Range [Max]	28 VDC	28 - 56 VDC
Voltage Range [Min]	16 VDC	16 - 36 VDC
Weight	1 kg	1 kg
Weight	2.205 lb	2.205 lb
Width [x]	68.5 mm	68.5 mm

FAN BLOWER, 190MM, 108W, 24VDC ROHS COMPLIANT: YES

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Features	Voltage - Rated	Approval Agency	Bearing Type	Material - Frame	Weight	Weight	Noise	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [x]	Termination	Power (Watts)	Air Flow	Air Flow	Current Rating (Amps)	Fan Type	Material - Blade	RPM	Static Pressure	Static Pressure	Voltage - Rated [custom]
Orion Fans ODB19069-24HB10A	16 VDC	28 VDC	40000 Hrs	PWM Control, Speed Sensor (Tach)	24 VDC	CE, cURus, TUV, UR	Ball	Aluminum	1 kg	2.205 lb	75 dB(A)	189.5 mm	65 °C	65 °C	-10 °C	-10 °C	68.5 mm	4 Wire Leads	108 W	395 CFM	11.06 mł/min	4.5 A	Motorized Impellers	Thermoplastic	3200 RPM	498.2 Pa	2 in H2O
Orion Fans ODB19069-48HB10A	36 VDC	56 VDC	40000 Hrs	PWM Control, Speed Sensor (Tach)		CE, cURus, TUV, UR	Ball	Aluminum	1 kg	2.205 lb	77 dB	189.5 mm	65 °C	65 °C	-10 °C	-10 °C	68.5 mm	4 Wire Leads	122 W	432 CFM	12.1 m³/min	2.55 A	Motorized Impellers	Thermoplastic	3500 RPM	700 Pa	2.81 in H2O	48 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 24VDC Round - 189.5mm Dia Ball 395.0 CFM (11.06mł/min) 4 Wire Leads
