10129379-902001BLF

Active

Amphenol ICC (FCI)

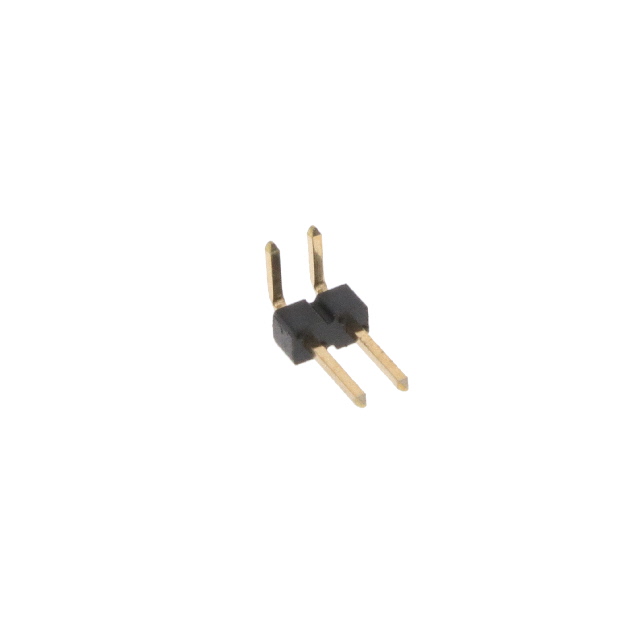

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10129381-918001BLF

10129379-902001BLF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet 10129381-918001BLF

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10129379-902001BLF

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

10129379 Series

Part	Fastening Type	Connector Type	Current Rating (Amps)	Shrouding	Material Flammability Rating	Applications	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Material	Style	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Rows	Number of Positions Loaded	Contact Shape	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating
Amphenol ICC (FCI) 10129379-912004BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm	0.09 "	2.29 mm	Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm	12	1	All	Square	Gold	0.318 "	8.08 mm
Amphenol ICC (FCI) 10129379-916003BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm			Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm		1	All	Square	Gold	0.318 "	8.08 mm	16	0.12 in	3.05 mm
Amphenol ICC (FCI) 10129379-903001BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm			Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm		1	All	Square	Gold	0.23 in			0.12 in	3.05 mm	5.84 mm
Amphenol ICC (FCI) 10129379-903003BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm			Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm		1	All	Square	Gold	0.318 "	8.08 mm		0.12 in	3.05 mm
Amphenol ICC (FCI) 10129379-912003BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm			Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm	12	1	All	Square	Gold	0.318 "	8.08 mm		0.12 in	3.05 mm
Amphenol ICC (FCI) 10129379-902001BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm			Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm	2	1	All	Square	Gold	0.23 in			0.12 in	3.05 mm	5.84 mm
Amphenol ICC (FCI) 10129379-903002BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm	0.09 "	2.29 mm	Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm		1	All	Square	Gold	0.23 in					5.84 mm
Amphenol ICC (FCI) 10129379-906004BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm	0.09 "	2.29 mm	Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm	6	1	All	Square	Gold	0.318 "	8.08 mm
Amphenol ICC (FCI) 10129379-909004BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm	0.09 "	2.29 mm	Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm	9	1	All	Square	Gold	0.318 "	8.08 mm
Amphenol ICC (FCI) 10129379-910001BLF	Push-Pull	Cuttable Header	3 A	Unshrouded	UL94 V-0	General Purpose Industrial Medical Telecommunications	Male Pin	105 ░C	-55 °C	Black	Copper Alloy	Solder	1 µin	0.025 µm			Through Hole Right Angle	Thermoplastic	Board to Board Cable	0.095 in	2.41 mm	0.1 in	2.54 mm	10	1	All	Square	Gold	0.23 in			0.12 in	3.05 mm	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.04
		100	$ 0.03
		500	$ 0.03
		1000	$ 0.02
		5000	$ 0.02
		10000	$ 0.02

Description

General part information

10129379 Series

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
