FS380R12A6T4BBPSA1

Active

Infineon Technologies

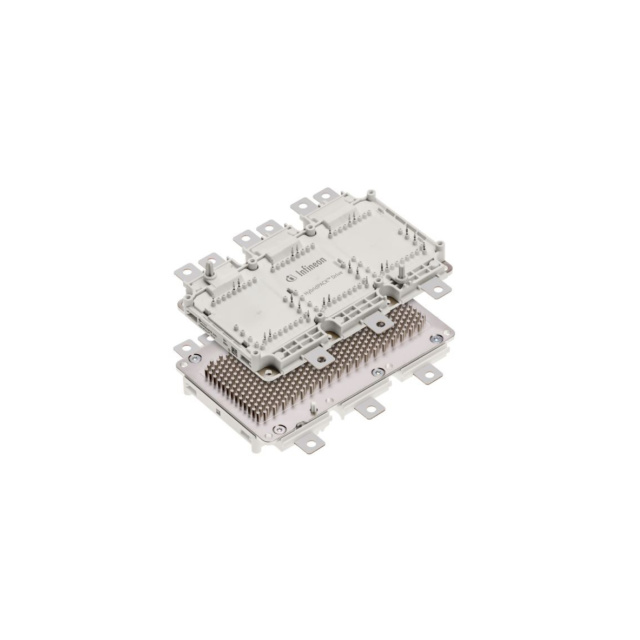

IGBT MODULE 1200V 380A

Search across all available documentation for this part.

Active

Infineon Technologies

IGBT MODULE 1200V 380A

Technical Specifications

Parameters and characteristics for this part

Specification	FS380R12A6T4BBPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	380 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	19 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	870 W
Supplier Device Package	AG-HYBRIDD-2
Vce(on) (Max) @ Vge, Ic	1.95 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Input	Operating Temperature [Max]	Operating Temperature [Min]	IGBT Type	Power - Max [Max]	Input Capacitance (Cies) @ Vce	Mounting Type	Package / Case	NTC Thermistor	Vce(on) (Max) @ Vge, Ic	Configuration
Infineon Technologies FS380R12A6T4BBPSA1	380 A	1200 V	AG-HYBRIDD-2	1 mA	Standard	150 °C	-40 °C	Trench Field Stop	870 W	19 nF	Chassis Mount	Module		1.95 V	Three Phase Inverter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module Trench Field Stop Three Phase Inverter 1200 V 380 A 870 W Chassis Mount AG-HYBRIDD-2
