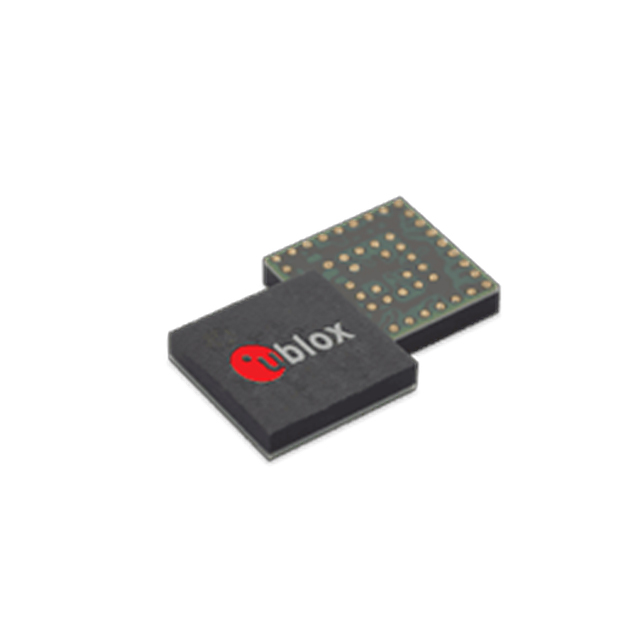

ZOE-M8Q-0

Active

u-blox

RF RECEIVER GNSS/GPS MODULE

Search across all available documentation for this part.

Active

u-blox

RF RECEIVER GNSS/GPS MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	ZOE-M8Q-0

Applications	General Purpose
Current - Receiving	25 mA
Data Interface	UART, SPI, I2C
Modulation or Protocol	GNSS, Galileo, BeiDou, GLONASS, GPS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	51-SMD Module
Sensitivity	-160 dBm
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

RF RECEIVER GNSS/GPS MODULE

Part	Mounting Type	Modulation or Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Data Interface	Applications	Current - Receiving	Package / Case
u-blox ZOE-M8Q-0	Surface Mount	BeiDou, Galileo, GLONASS, GNSS, GPS	2.7 V	3.6 V	85 °C	-40 °C	-160 dBm	I2C, SPI, UART	General Purpose	25 mA	51-SMD Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ZOE-M8 RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS -160dBm
