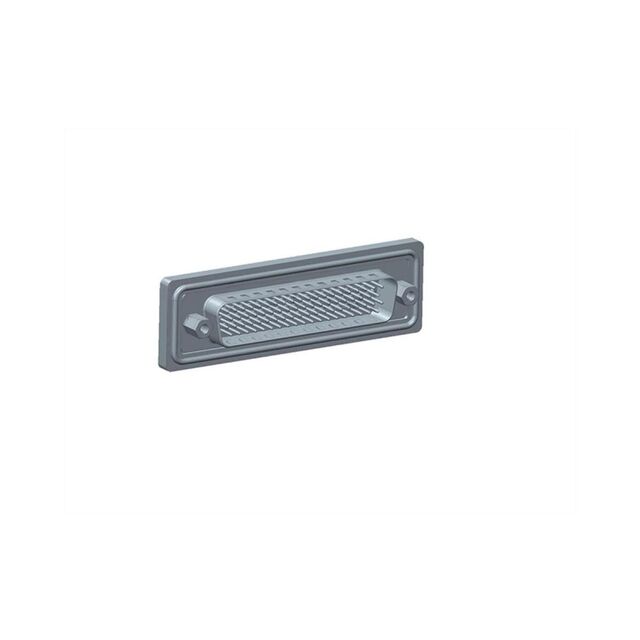

HDB-78PMMP-SL7001

Active

Amphenol LTW

CONN D-SUB HD PLUG 78POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB HD PLUG 78POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-78PMMP-SL7001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Panel Mount
Number of Positions	78
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Termination	Solder

Part	Features	Ingress Protection	Termination	Mounting Type	Contact Material	Flange Feature	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish	Shell Material, Finish	Dielectric Material	Connector Style	Number of Positions	Connector Type	Current Rating (Amps)
Amphenol LTW HDB-78PMMP-SL7001	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Solder	Panel Mount Through Hole	Copper Alloy	Female Screwlock (4-40) Mating Side	Signal	-40 °C	105 ░C	Black	Gold	Nickel Plated Steel	Polybutylene Terephthalate (PBT)	D-Sub High Density	78	Male Pins Plug	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 30.03

General part information

78 Position D-Sub, High Density Plug, Male Pins Connector
