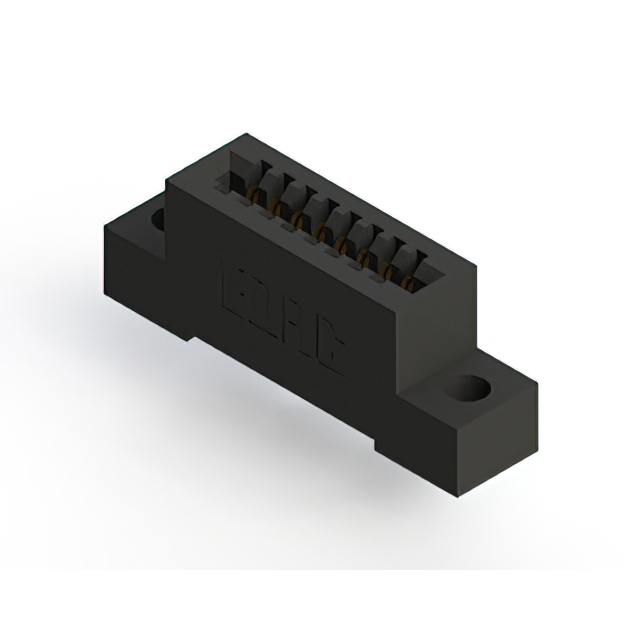

392-008-524-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-008-524-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-008-524-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
392-008 Series
| Part | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination Rows | Gender | Pitch [x] | Pitch [x] | Number of Positions | Material - Insulation | Contact Type | Flange Feature | Contact Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Type | Mounting Type | Color | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Gold | Solder | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole | Black | Single | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Floating Bobbin Flush Mount | Gold | Solder Wire Wrap | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole Right Angle | Black | Single | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Flush Mount Top Opening Unthreaded | Gold | Wire Wrap | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole | Black | Single | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Floating Bobbin Flush Mount | Gold | Solder Wire Wrap | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole Right Angle | Black | Single | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Flush Mount Top Opening Unthreaded | Gold | Solder | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole | Black | Single | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Flush Mount Top Opening Unthreaded | Gold | Solder | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole | Black | Single | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Gold | Solder Wire Wrap | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole Right Angle | Black | Single | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Floating Bobbin Flush Mount | Gold | Wire Wrap | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole | Black | Single | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Gold | Solder Wire Wrap | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole Right Angle | Black | Single | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | 2.54 mm | 0.1 in | 8 | Polyester Thermoplastic | Cantilever | Flush Mount Side Opening Unthreaded | Gold | Solder | -40 °C | 105 ░C | 8 | 8 | 8 | Non Specified - Single Edge | Through Hole | Black | Single | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 7.83 | |
Description
General part information
392-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
