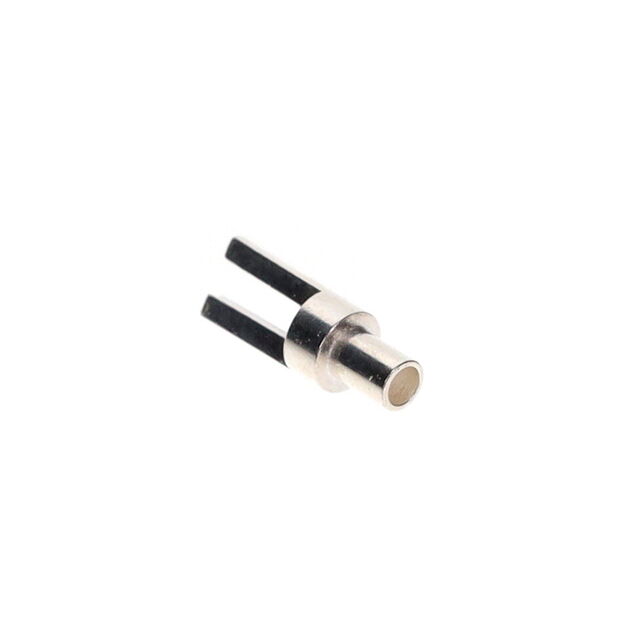

2112-1-01-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.062DIA SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSolder Terminals Slotted (metric)
2112-1-01-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.062DIA SILVER
Deep-Dive with AI
DocumentsSolder Terminals Slotted (metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2112-1-01-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.031 in |
| Board Thickness | 0.79 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.18 mm |
| Length - Above Flange [x] | 0.125 in |
| Length - Below Flange [x] | 0.053 in |
| Length - Below Flange [x] | 1.35 mm |
| Length - Overall [x] | 4.52 mm |
| Length - Overall [x] | 0.178 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.062 in |
| Pin Size - Above Flange [diameter] | 1.57 mm |
| Terminal Style | Single End, Slotted |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.03 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.57 | |||
| 3000 | $ 0.52 | |||
Description
General part information
2112-1 Series
PC Pin Terminal Connector Through Hole Silver 0.062" (1.57mm) Dia
