PGSC-2128A
ActiveEssentra Access Solutions

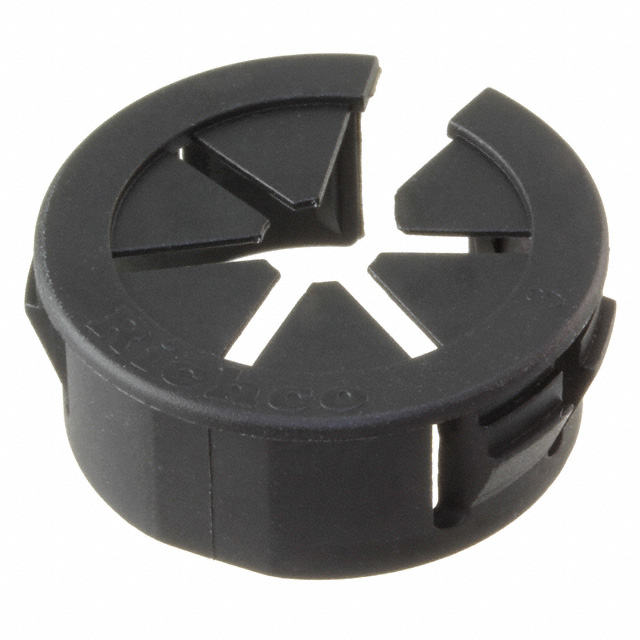

BUSHING SPLIT 0.815" NYLON BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PGSC-2128A
ActiveEssentra Access Solutions
BUSHING SPLIT 0.815" NYLON BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PGSC-2128A |
|---|---|
| Bushing, Grommet Type | Bushing, Split |
| Color | Black |
| Diameter - Inside [diameter] | 0.815 in |
| Diameter - Inside [diameter] | 20.7 mm |
| Features | Snap-Mount |
| For Use With/Related Products | Wires, Cable |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Dimensions [Max] | 1.102 in |
| Panel Cutout Dimensions [Max] | 27.99 mm |
| Panel Cutout Dimensions [Min] | 27.81 mm |
| Panel Cutout Dimensions [Min] | 1.095 in |
| Panel Thickness [Max] | 0.118 in |
| Panel Thickness [Max] | 3 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.29 | |||
| 200 | $ 0.28 | |||
| 400 | $ 0.25 | |||
| 600 | $ 0.24 | |||
| 1000 | $ 0.20 | |||
| 2600 | $ 0.18 | |||
Description
General part information
PGSC Series
Circular - 1.095" ~ 1.102" (27.81mm ~ 27.99mm) Bushing, Split 0.815" (20.70mm) Black
