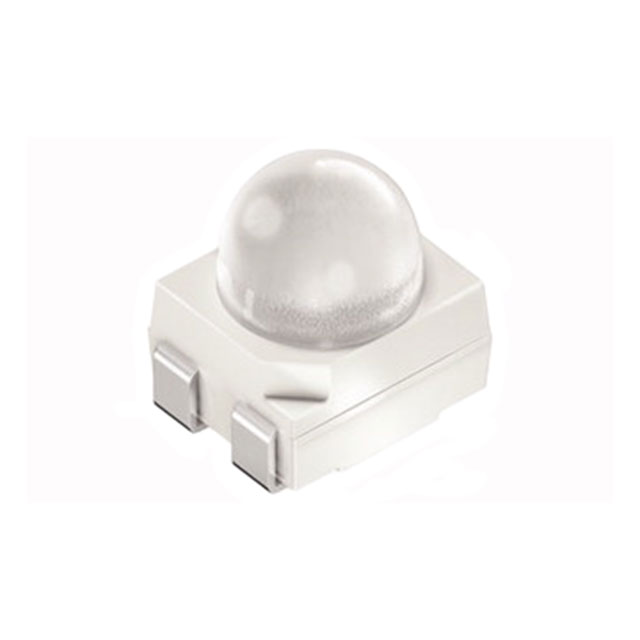

SFH 4259S

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 100MA PLCC

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 100MA PLCC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFH 4259S	SFH4259 Series

Current - DC Forward (If) (Max) [Max]	100 mA	100 mA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	4-PLCC	4-PLCC
Radiant Intensity (Ie) Min @ If [Min]	85 mW/sr	40 - 85 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	50 °	50 °
Voltage - Forward (Vf) (Typ)	3.1 V	1.5 - 3.1 V
Wavelength	860 nm	860 nm

POWER TOPLED LENS

Part	Wavelength	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Package / Case	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)
ams-OSRAM USA INC. SFH 4259-UV1	860 nm	Infrared (IR)	-40 °C	100 °C	100 mA	4-PLCC	Top View	40 mW/sr	Surface Mount	50 °	1.5 V
ams-OSRAM USA INC. SFH 4259-U	860 nm	Infrared (IR)	-40 °C	100 °C	100 mA	4-PLCC	Top View	40 mW/sr	Surface Mount	50 °	1.5 V
ams-OSRAM USA INC. SFH 4259S	860 nm	Infrared (IR)	-40 °C	100 °C	100 mA	4-PLCC	Top View	85 mW/sr	Surface Mount	50 °	3.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 3.1V 100mA 85mW/sr @ 100mA 50° 4-PLCC
