Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISA063V2 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 1 A |
| Frequency - Switching | 1.5 MHz |
| Main Purpose | DC/DC, Step Up or Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck-Boost |
| Supplied Contents | Board(s) |
| Utilized IC / Part | STBB1 |
| Voltage - Output [Max] | 5.5 V |
| Voltage - Output [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 42.50 | |
Description
General part information
STEVAL-ISA063V2 Series

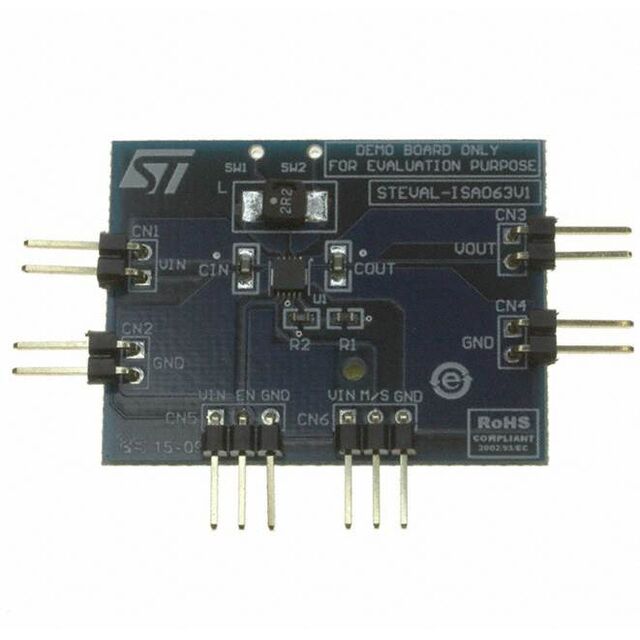

The STEVAL-ISA063V2 demonstration board implements a typical buck-boost DC-DC converter based on STMicroelectronics’ STBB1-APUR high efficiency single inductor dual mode buck-boost DC-DC converter.
The device is fixed frequency and capable of providing output voltages ranging from 1.2 V to 5.5 V and input voltages from 2.0 V to 5.5 V.
The STBB1-APUR can operate with input voltages higher than, equal to, or lower than the output voltage, rendering the product suitable for single lithium-ion (Li-Ion), multicell alkaline or NiMH applications where the output voltage is within the battery voltage range.
