180NQ045R-1

Active

SMC Diode Solutions

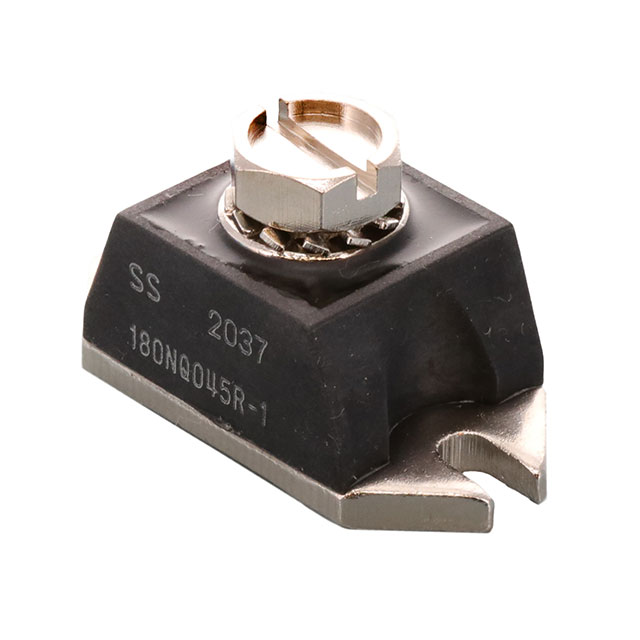

DIODE SCHOTTKY 45V 180A PRM1-1

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 45V 180A PRM1-1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	180NQ045R-1	180NQ Series

Capacitance @ Vr, F	5800 pF	5800 - 7700 pF
Current - Average Rectified (Io)	180 A	180 A
Current - Reverse Leakage @ Vr	-	15 mA
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	HALF-PAK	HALF-PAK
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	PRM1-1 (Half Pak Module)	PRM1-1 (Half Pak Module)
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V	40 - 45 V
Voltage - Forward (Vf) (Max) @ If	600 mV	600 mV

DIODE SCHOTTKY 40V 180A PRM1-1

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Capacitance @ Vr, F	Mounting Type
SMC Diode Solutions 180NQ040-1	40 V	Schottky	180 A	600 mV	HALF-PAK	200 mA, 500 ns	15 mA	150 °C	-55 °C	PRM1-1 (Half Pak Module)	7700 pF	Chassis Mount
SMC Diode Solutions 180NQ045-1	45 V	Schottky	180 A	600 mV	HALF-PAK	200 mA, 500 ns		150 °C	-55 °C	PRM1-1 (Half Pak Module)	7700 pF	Chassis Mount
SMC Diode Solutions 180NQ045R-1	45 V	Schottky	180 A	600 mV	HALF-PAK	200 mA, 500 ns		150 °C	-55 °C	PRM1-1 (Half Pak Module)	5800 pF	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 45 V 180A Chassis Mount PRM1-1 (Half Pak Module)
