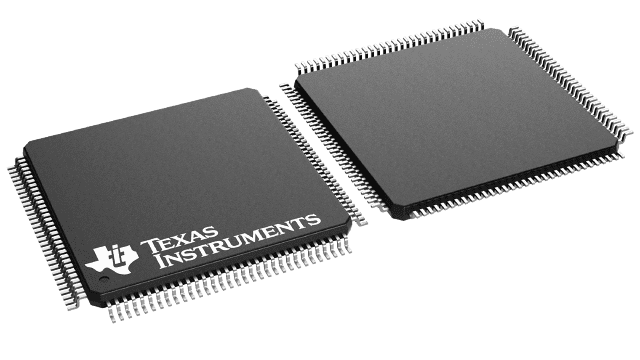

TM4C1290NCPDTT3
ActiveTexas Instruments
32-BIT ARM CORTEX-M4F BASED MCU WITH 120-MHZ, 1-MB FLASH, 256-KB RAM, USB 128-TQFP -40 TO 105
Deep-Dive with AI
Search across all available documentation for this part.
TM4C1290NCPDTT3
ActiveTexas Instruments
32-BIT ARM CORTEX-M4F BASED MCU WITH 120-MHZ, 1-MB FLASH, 256-KB RAM, USB 128-TQFP -40 TO 105
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TM4C1290NCPDTT3 | TM4C1290 Series |
|---|---|---|
| Connectivity [custom] | QSSI, EBI/EMI, UART/USART, I2C, USB OTG, CANbus, IrDA | QSSI, EBI/EMI, UART/USART, I2C, USB OTG, CANbus, IrDA |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Data Converters | - | 24x12b |
| Data Converters [custom] | 20 | 20 |
| Data Converters [custom] | 12 bits | 12 bits |
| EEPROM Size | 6K x 8 | 6K x 8 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 90 | 90 - 140 |
| Operating Temperature [Max] | 105 °C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 128-TQFP | 128-TQFP, 212-VFBGA |
| Peripherals | DMA, Motion Control PWM, WDT, PWM, POR, Brown-out Detect/Reset | DMA, Motion Control PWM, WDT, PWM, POR, Brown-out Detect/Reset |
| Program Memory Size | 1 MB | 1 MB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 256 K | 256 K |
| Speed | 120 MHz | 120 MHz |
| Supplier Device Package | - | 212-NFBGA (10x10) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.63 V | 3.63 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.97 V | 2.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TM4C1290 Series
32-bit Arm Cortex-M4F based MCU with 120-MHz, 1-MB Flash, 256-kb RAM, USB
| Part | Mounting Type | Number of I/O | RAM Size | Data Converters [custom] | Data Converters [custom] | Package / Case | Core Size | Core Processor | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Connectivity [custom] | EEPROM Size | Program Memory Size | Operating Temperature [Max] | Operating Temperature [Min] | Oscillator Type | Speed | Peripherals | Program Memory Type | Supplier Device Package | Data Converters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TM4C1290NCPDTI3RTiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network. | Surface Mount | 90 | 256 K | 20 | 12 bits | 128-TQFP | 32-Bit Single-Core | ARM® Cortex®-M4F | 3.63 V | 2.97 V | CANbus, EBI/EMI, I2C, IrDA, QSSI, UART/USART, USB OTG | 6K x 8 | 1 MB | 85 °C | -40 °C | Internal | 120 MHz | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | FLASH | ||
Texas Instruments TM4C1290NCZADI3RTiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCZAD microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCZAD microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network. | Surface Mount | 140 | 256 K | 212-VFBGA | 32-Bit Single-Core | ARM® Cortex®-M4F | 3.63 V | 2.97 V | CANbus, EBI/EMI, I2C, IrDA, QSSI, UART/USART, USB OTG | 6K x 8 | 1 MB | 85 °C | -40 °C | Internal | 120 MHz | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | FLASH | 212-NFBGA (10x10) | 24x12b | ||
Texas Instruments TM4C1290NCZADI3Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCZAD microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCZAD microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network. | Surface Mount | 140 | 256 K | 212-VFBGA | 32-Bit Single-Core | ARM® Cortex®-M4F | 3.63 V | 2.97 V | CANbus, EBI/EMI, I2C, IrDA, QSSI, UART/USART, USB OTG | 6K x 8 | 1 MB | 85 °C | -40 °C | Internal | 120 MHz | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | FLASH | 212-NFBGA (10x10) | 24x12b | ||
Texas Instruments TM4C1290NCZADT3Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCZAD microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCZAD microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network. | Surface Mount | 140 | 256 K | 212-VFBGA | 32-Bit Single-Core | ARM® Cortex®-M4F | 3.63 V | 2.97 V | CANbus, EBI/EMI, I2C, IrDA, QSSI, UART/USART, USB OTG | 6K x 8 | 1 MB | 105 °C | -40 °C | Internal | 120 MHz | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | FLASH | 212-NFBGA (10x10) | 24x12b | ||
Texas Instruments TM4C1290NCPDTT3Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network. | Surface Mount | 90 | 256 K | 20 | 12 bits | 128-TQFP | 32-Bit Single-Core | ARM® Cortex®-M4F | 3.63 V | 2.97 V | CANbus, EBI/EMI, I2C, IrDA, QSSI, UART/USART, USB OTG | 6K x 8 | 1 MB | 105 °C | -40 °C | Internal | 120 MHz | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | FLASH |
Description
General part information
TM4C1290 Series
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM's widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM's Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1290NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.
