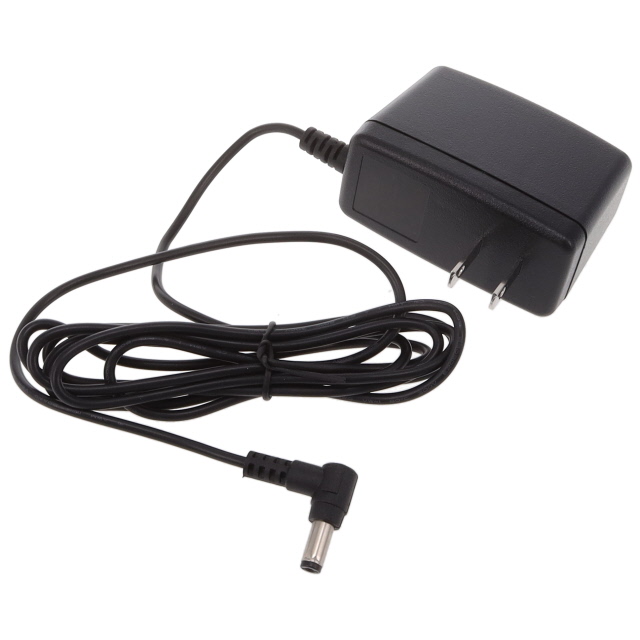

TRG1515-A-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 15V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TRG15 Cable DC Plug Configuration

TRG1515-A-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 15V 15W

Deep-Dive with AI

DocumentsDatasheet TRG15 Cable DC Plug Configuration

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRG1515-A-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	North America
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.84 in
Size / Dimension [y]	1.38 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.05 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

TRG1515 Series

Part	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption [Max]	Cord Length	Cord Length	Current - Output (Max) [Max]	Polarization	Applications	Input Connector	Form	Voltage - Output	Input Type	Region Utilized	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Weight	Weight
Cincon Electronics Co. LTD TRG1515-A-01E03 VI	CE cULus FCC GS PSE TUV	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	90 VAC	264 VAC	60950-1	CoC Tier 2 Level VI	-20 C	60 °C	75 mW	70.9 in	1.8 m	1 A	Positive Center	ITE (Commercial)	NEMA 1-15P	Wall Mount (Class II)	15 VDC	Fixed Blade	North America	15 W
Cincon Electronics Co. LTD TRG1515-A-11E03 VI	CE cULus FCC GS PSE TUV	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	90 VAC	264 VAC		CoC Tier 2 Level VI	-20 C	60 °C	75 mW	70.9 in	1.8 m	1 A	Positive Center	ITE (Commercial)	NEMA 1-15P	Wall Mount (Class II)	15 VDC	Fixed Blade	North America	15 W	Barrel Plug	2.1 mm 5.5 mm	12 mm	0.309 lb	140 g
Cincon Electronics Co. LTD TRG1515-U-01E03 VI	CE cULus FCC GS PSE TUV	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	90 VAC	264 VAC	60950-1	CoC Tier 2 Level VI	-20 C	60 °C	75 mW	70.9 in	1.8 m	1 A	Positive Center	ITE (Commercial)	BS 1363	Wall Mount (Class I)	15 VDC	Fixed Blade	United Kingdom	15 W
Cincon Electronics Co. LTD TRG1515-01-U-01E03 VI	CE cULus FCC GS PSE TUV	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	90 VAC	264 VAC	60950-1	CoC Tier 2 Level VI	-20 C	60 °C	75 mW	70.9 in	1.8 m	1 A	Positive Center	ITE (Commercial)	BS 1363	Wall Mount (Class I)	15 VDC	Fixed Blade	United Kingdom	15 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 12.68

Description

General part information

TRG1515 Series

15V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

TRG15 Cable DC Plug Configuration

Datasheet
