FA1-NARJ-C01-3

Active

Amphenol RF

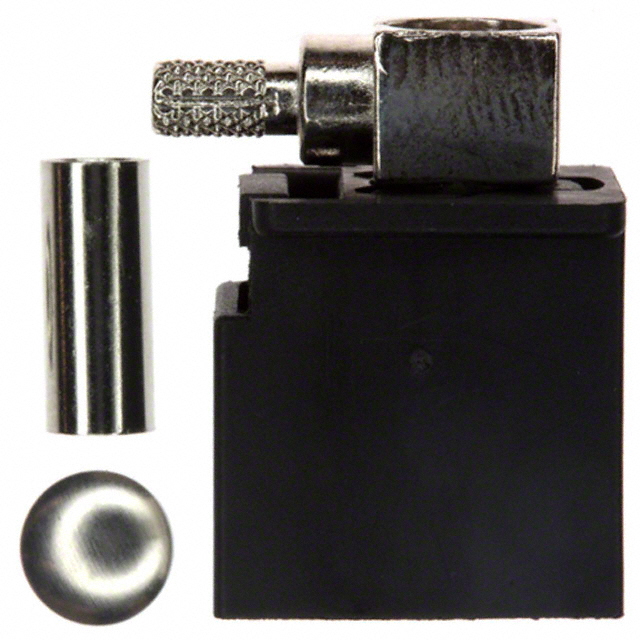

CONN FAKRA JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NARJ-C01-3

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code A
Frequency - Max [Max]	6000 MHz
Housing Color	Jet, Black
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Connector Style	Center Contact Plating	Mounting Type	Connector Type	Body Finish	Shield Termination	Features	Number of Ports	Impedance	Includes	Body Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Contact Termination	Cable Group	Dielectric Material	Housing Color	Insertion Loss	Center Contact Material
Amphenol RF FA1-NARJ-C04-0	Fakra SMB	Gold	Free Hanging (In-Line) Right Angle	Female Socket Jack	Nickel	Crimp	Code A	1	50 Ohms	1 Connector 1 End Cap 1 Ferrule	Brass	Latch Lock	100 °C	-40 °C	6000 MHz	Solder	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	Black Jet	0.3 dB	Beryllium Copper
Amphenol RF FA1-NARJ-C01-3	Fakra SMB	Gold	Free Hanging (In-Line) Right Angle	Female Socket Jack	Nickel	Crimp	Code A	1	50 Ohms	1 Connector 1 End Cap 1 Ferrule	Brass	Latch Lock	100 °C	-40 °C	6000 MHz	Solder	188 188A 316 LMR-100 M17/119-RG174 RG-174	Polytetrafluoroethylene (PTFE)	Black Jet	0.3 dB	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
