35HDRABAU

Active

Switchcraft Inc.

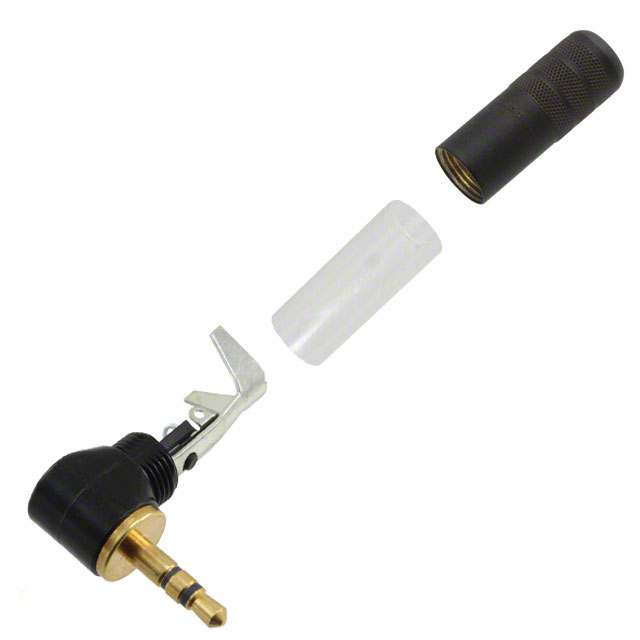

CONN PLUG STEREO 3.5MM RA 3COND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35HDRABAU

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM RA 3COND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35HDRABAU	35HDRA Series

	-	-
Actual Diameter [diameter]	0.138 "	0.138 "
Actual Diameter [diameter]	3.5 mm	3.5 mm
Body Color	Gold, Black	Gold, Black, Silver
Body Material	Brass	Brass
Cable Opening	-	0.175 in
Cable Opening	-	4.44 mm
Cable Opening [custom]	6.35 mm	6.35 - 7.37 mm
Cable Opening [custom]	0.25 in	0.25 - 0.29 in
Connector Type	Phone Plug	Phone Plug
Contact Material	Brass	Brass
Contact Material - Plating	-	Nickel
Contact Material - Plating [custom]	Gold	Gold
Current Rating (Amps)	4 A	4 A
Gender	Male	Male
Housing Material	Brass	Brass
Includes	1 Connector, 1 Insulator Tube, 1 Handle	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Internal Switch(s)	False	False
Mating Length/Depth	14.2 mm	13 - 14.2 mm
Mating Length/Depth	0.56 in	0.51 - 0.56 in
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	66 °C	66 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Shielded	Shielded
Signal Lines	Stereo	Stereo
Termination	Solder	Solder

35HDRA Series

PHONE CONNECTORS 3.5MM R/A PLUG BLACK/GOLD

Part	Current Rating (Amps)	Contact Material - Plating [custom]	Connector Type	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Signal Lines	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Housing Material	Mating Length/Depth	Mating Length/Depth	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Material	Termination	Shielding	Contact Material - Plating [custom]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. 35HDRABAUS	4 A	Gold	Phone Plug	Brass	0.175 in	4.44 mm	Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	14.2 mm	0.56 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Black, Gold	0.138 "	3.5 mm	Brass	Solder	Shielded
Switchcraft Inc. 35HDRANNS	4 A		Phone Plug	Brass	0.175 in	4.44 mm	Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded	Nickel
Switchcraft Inc. 35HDRANAU	4 A	Gold	Phone Plug	Brass			Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded		7.37 mm	0.29 in
Switchcraft Inc. 35HDRANAUS	4 A	Gold	Phone Plug	Brass	0.175 in	4.44 mm	Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded
Switchcraft Inc. 35HDRABN
Switchcraft Inc. 35HDRABAU	4 A	Gold	Phone Plug	Brass			Stereo	0 °C	66 °C	Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	14.2 mm	0.56 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Black, Gold	0.138 "	3.5 mm	Brass	Solder	Shielded		6.35 mm	0.25 in
Switchcraft Inc. 35HDRANN	4 A		Phone Plug	Brass			Stereo			Male	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line), Right Angle	Brass	13 mm	0.51 in	1 Connector, 1 Handle, 1 Insulator Tube	3	3	Silver	0.138 "	3.5 mm	Brass	Solder	Shielded	Nickel	7.37 mm	0.29 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.94
		10	$ 20.80
		25	$ 18.85
		50	$ 17.53
		100	$ 16.39

Description

General part information

35HDRA Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder

Documents

Technical documentation and resources
